4 Axis Hobby Mini 3D Cnc Milling Punching Machine Router

Product Description

Product Description $title$
Product Application * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Main Features ▷ 1300*2500mm, 1500*3000mm, and 2000*4000mm standard sizes (Special sizes available upon request.)
▷Rotary axis 80-300mm (for option)
▷ 3.5kw high-frequency  spindle
▷Hybrid servo motors.
▷ Automatic tool calibration easy and accurate “Z” zero position for single and multiple tool changes
▷ Multifunction Vaccum and Aluminum T-Slot table
▷ Easy to use DSP controller  with all industry standard CAD/CAM software
Descriptions
                                                                     Parameters
Model
ABP-1325
ABP-1530
ABP-2030
ABP-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
20000mm/min
Spindle Power
3.5kw, 4.5kw, 6kw, 7kw
Spindle Speed
0-18000,  0-24000RPM
Drive Motors
Stepper motor and driver(Yaskawa servo motor optional)
Working Voltage
Custom made
Command Language
G Code
Operating System
Mach 3 (DSP or Nc-studio optional)
Computer Interface
USB interface
Inverter
Taiwan DELTA(Fuling optional)
Software
Vectric Aspire/Type 3 /Artcam /Ucancam

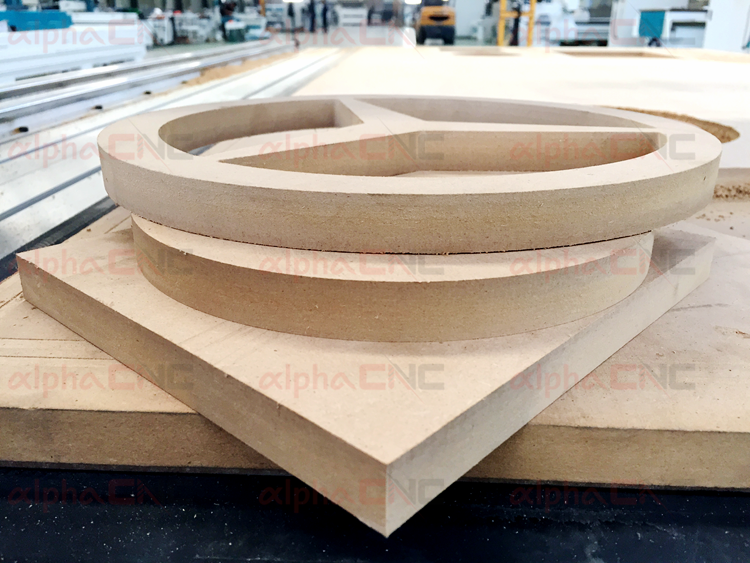

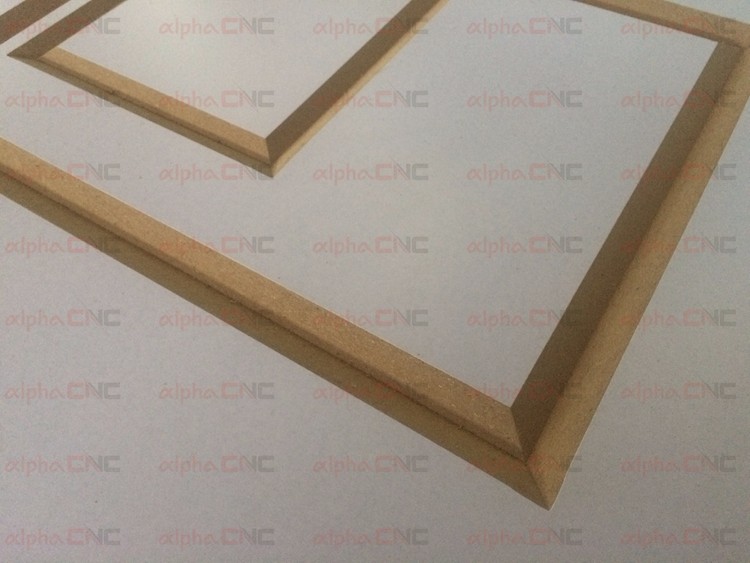

Please kindly note the above configuration is standard configuration.  Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.  Sample Detailed Images High Frequency Powerful spindle
The High quality BP series CNC Router machine comes with 3.5kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO tool holders. Fully programmable speeds from 6000 to 18000 RPM, and comes complete with pneumatically retractable vacuum hood.
Machine Base Frame  The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.
DSP controller  DSP 4 axis controller turns a typical off line CNC machine controller. It is the most sy to learn control system, which is perfect for green hand.

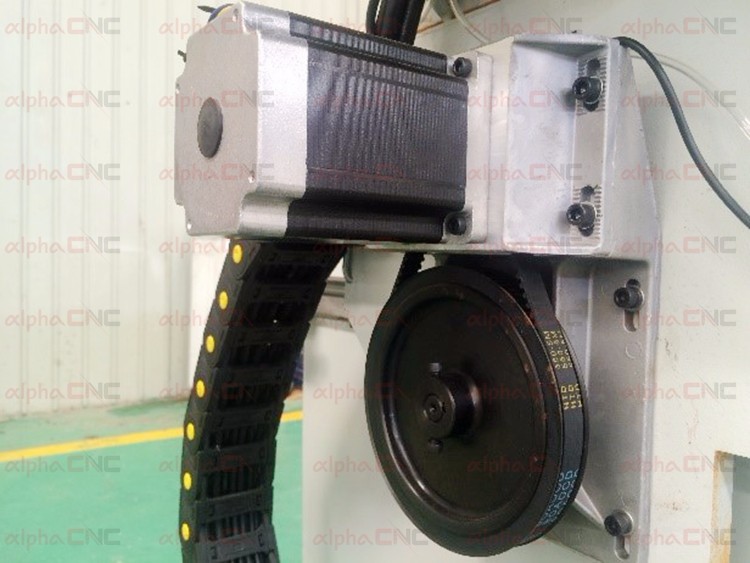

Drive Motors
The High Quality ABP Series CNC Router utilizes Stepper motors powered Leadshine Drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime. It is better than the stepper motor, which has lower heat and solves the lost step problem.
Hiwin square rail&High quality helical rack pinion
The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.

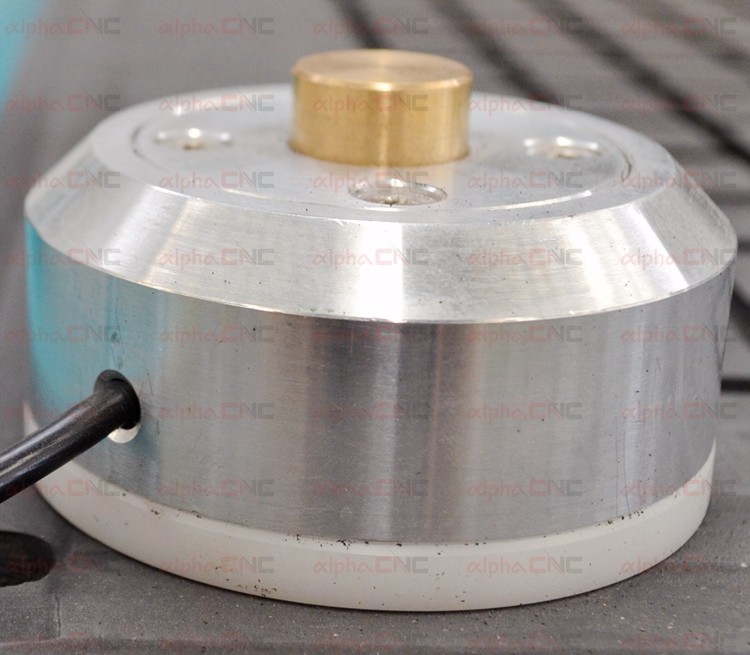

CNC Tool Calibration Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

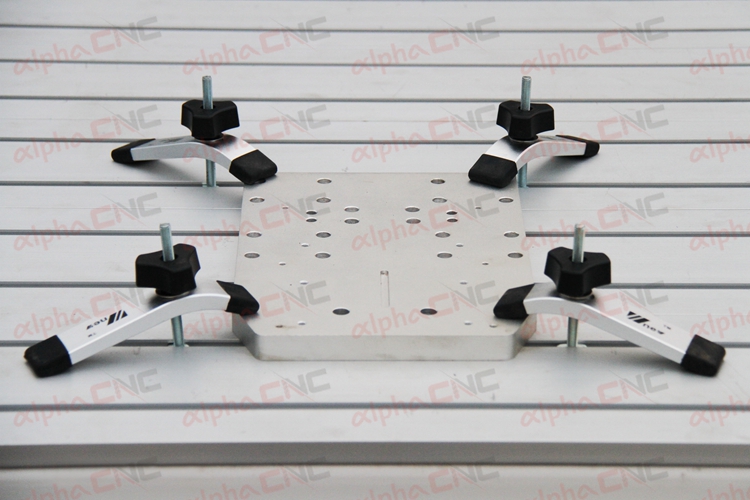

 Aluminum T-slot profile table The aluminum T-slot profile table can fix any different material, no matter it is solid wood, MDF, acrylic or metal such as aluminum, steel, copper.  Vectric Aspire Software Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

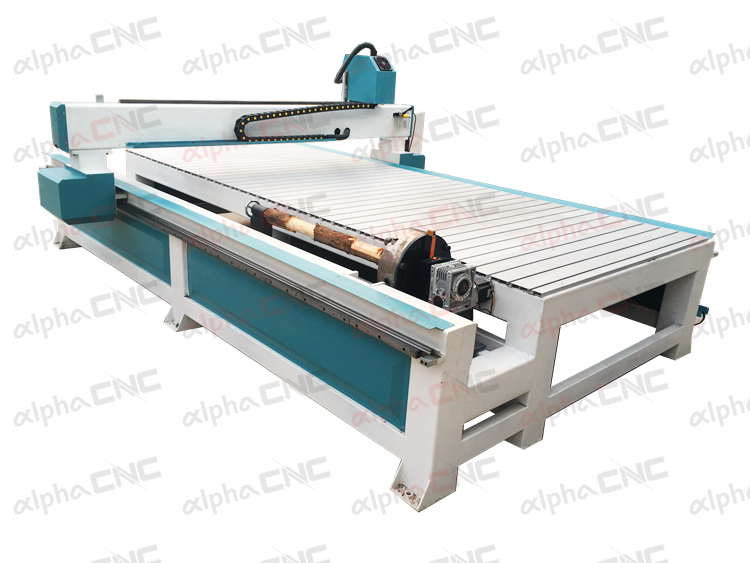

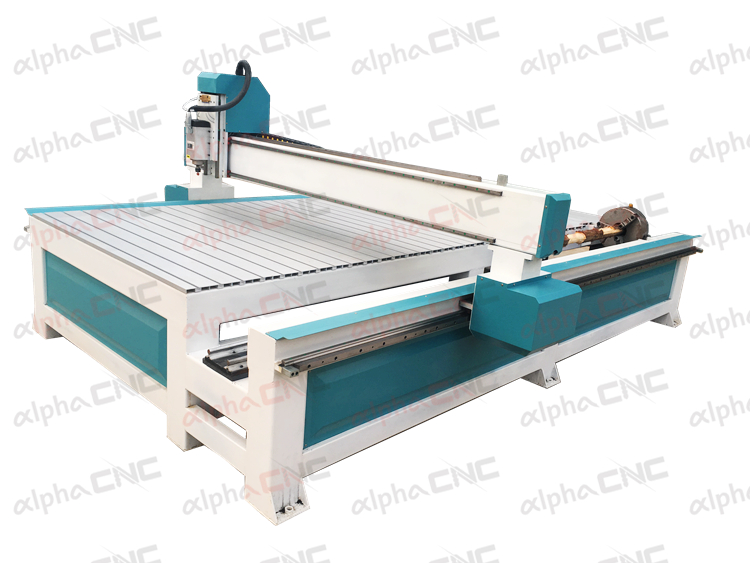

The 4th Rotary Axis  Alpha's 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of Alpha's 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions. Optional Parts  CNC Router Vacuum Pumps 5.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump.


Dust Collector  3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust. Oil mist Coolant System
The  Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity. Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery
Packaging
Size
3700 (L) * 2300 (W) * 1900 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

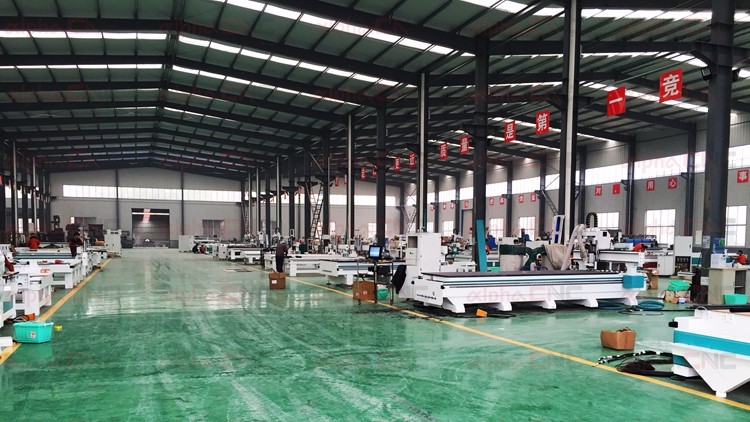

Company Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.
Agent and distributor wanted all over the world! Related Products 1325 1530 wood acrylic MDF Mach 3 DSP controller stepper motor 3.5kw 4.5kw spindle vacuum pump table CNC router machine 91.8% Response Rate Factory high quality 1325 4*8ft sign advertising industry acrylic ABS double plate furniture wood mdf CNC router machine 91.8% Response Rate 1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router 91.8% Response Rate

Contact us if you need more details on 4 axis hobby mini cnc milling machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about cnc punching machine、3d cnc router. If these products fail to match your need, please contact us and we would like to provide relevant information.
