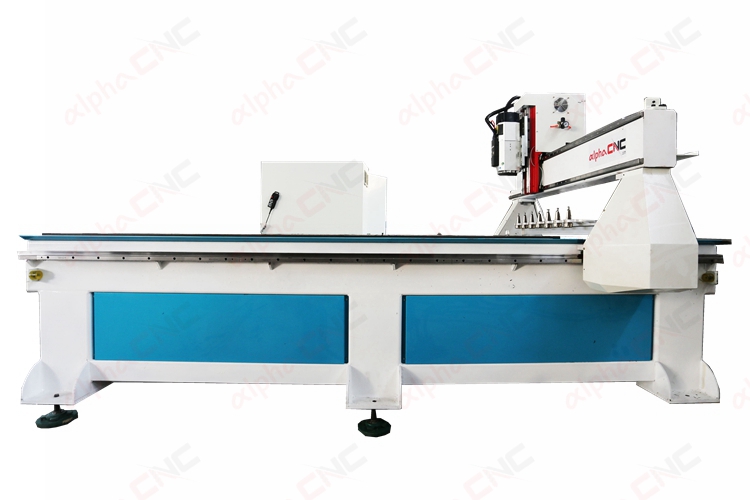

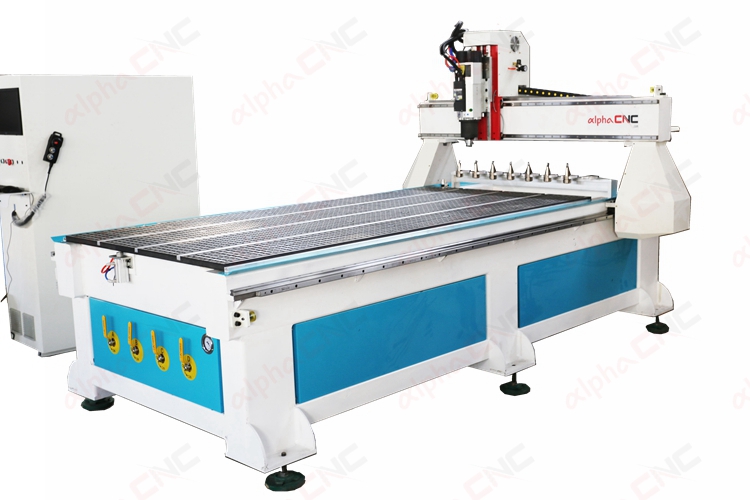

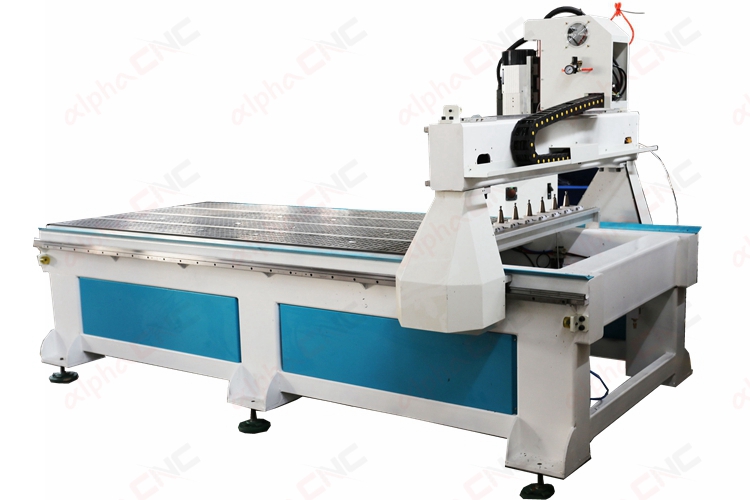

Automatic Tool Change Cnc Milling Machine Kit China New Products Looking For Distributor Router

Product Description Automatic Tool Change Cnc Milling Machine Kit China New Products Looking For Distributor Router

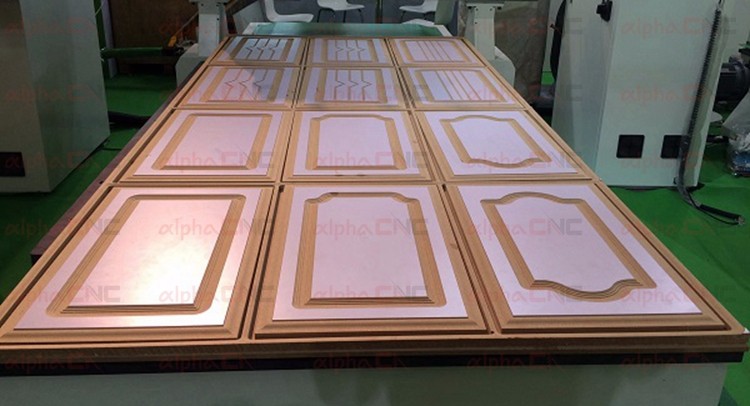

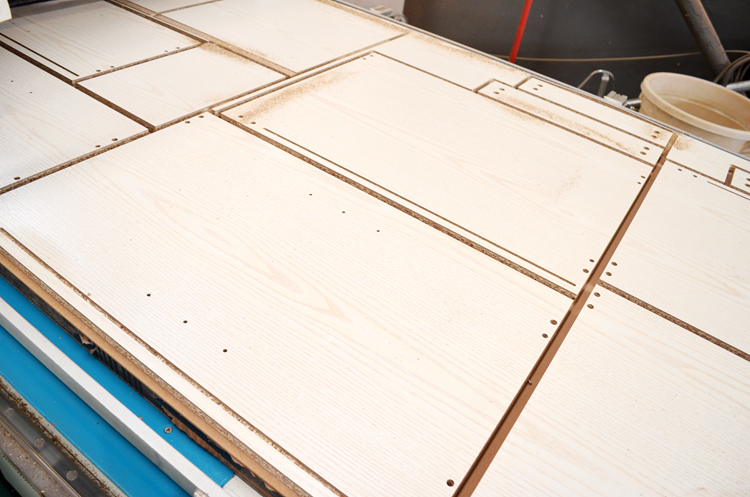

Product Application * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Main Features---cnc milling machine kit ※ 9KW high frequency automatic tool changer spindle
※ 8-position tool rack
※ 6-zone vacuum T-slot table
※ Pneumatic material placement stops
※ Taiwan Sytec controller.
※ Delta servo motor
※ Automatic tool calibration pad
※ Hiwin square rail

Descriptions	Parameters
Model	APS-1325	APS-1530	APS-2030	APS-2040	Custom made
Working area	1300*2500mm	1500*3000mm	2000*3000mm	2000*4000mm	Custom made
Accuracy	±0.03mm
Table Surface	Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame	Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure	Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure	Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate	60000mm/min
Max. Working Speed	25000mm/min
Spindle Power	9kw ATC Spindle
Spindle Speed	0-24000RPM
Drive Motors	Delta  servo motor and driver(Japan Yaskawa optional)
Working Voltage	Custom made
Command Language	G Code
Operating System	Taiwan SYNTEC 6MA control system(German Siemens optional)
Computer Interface	USB interface
Collet	ISO30
Inverter	Taiwan DELTA 11kw
Software	Vectric Aspire/Type 3 /Artcam /Ucancam

Please kindly note the above configuration is standard configuration.  Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

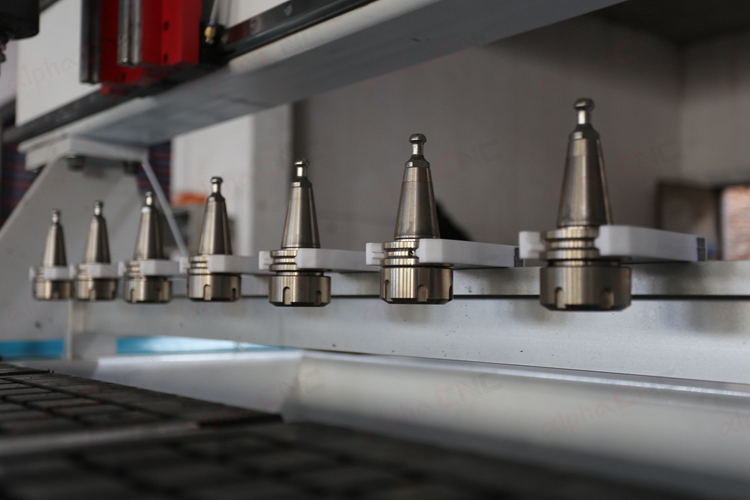

Sample Detailed Images 8-position Tool Rack The Alpha CNC Series machine includes an 8-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.
Gantry The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

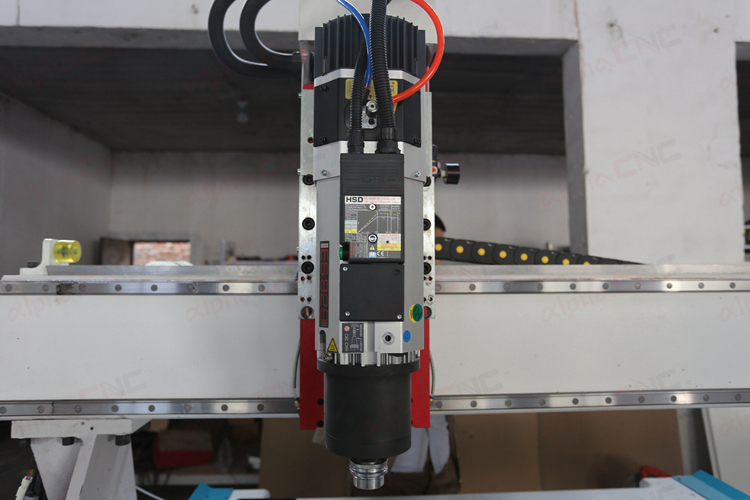

12HP  High Frequency Automatic Tool Changer Spindle


The Alpha ATC CNC Rouer machine comes standard with a 12HP  high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.
Drive Motors
The Alpha Series CNC Router utilizes AC Servo motors powered by Delta  Drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime.
Drive Train Assembly The Alpha Series uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.
CNC Tool Calibration
Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

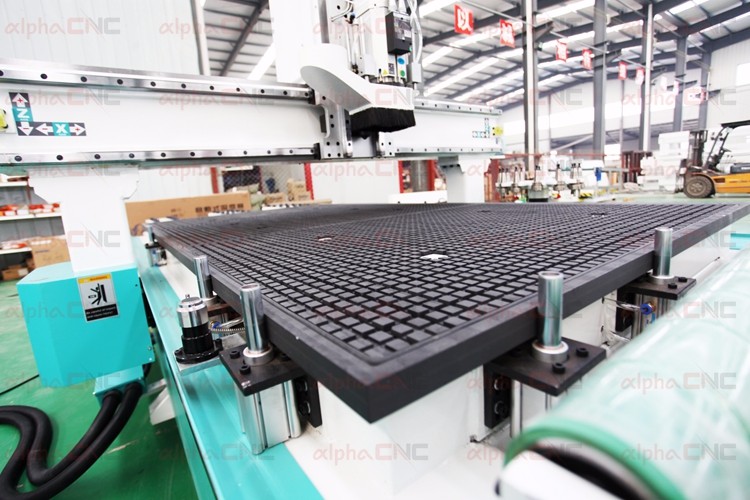

Pneumatic Material Alignment Stops The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

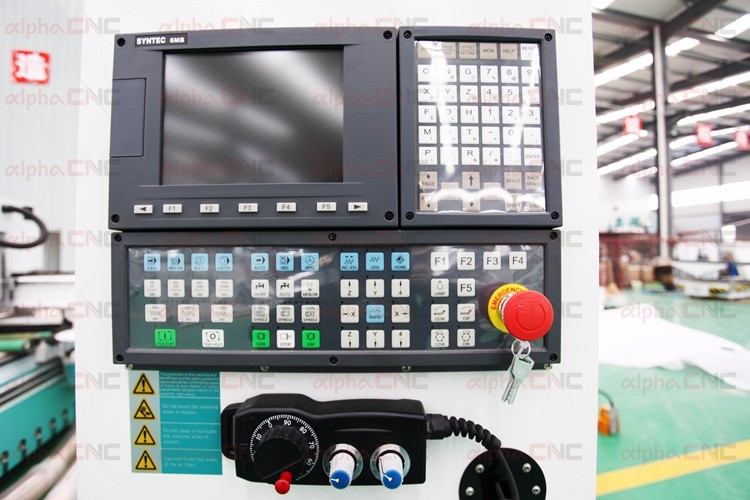

Control System  Brand: Syntec(Siemens and  Nc-studio optional)
Friendly interface, easy to learn to operate interface, accelerate the operation of learning

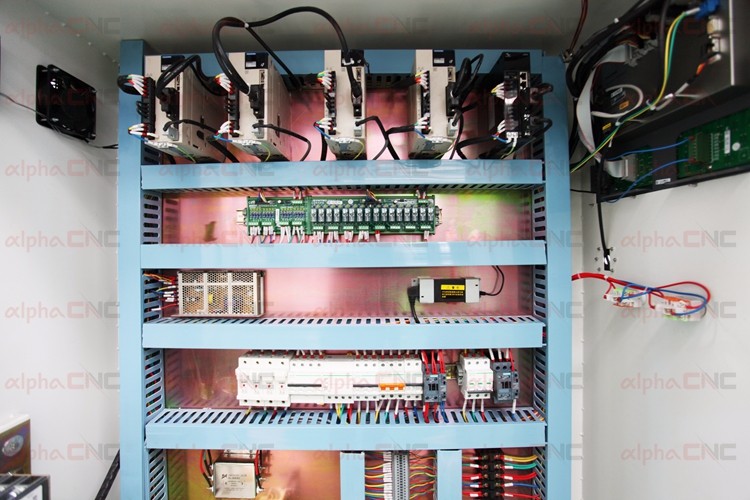

Electrical parts All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

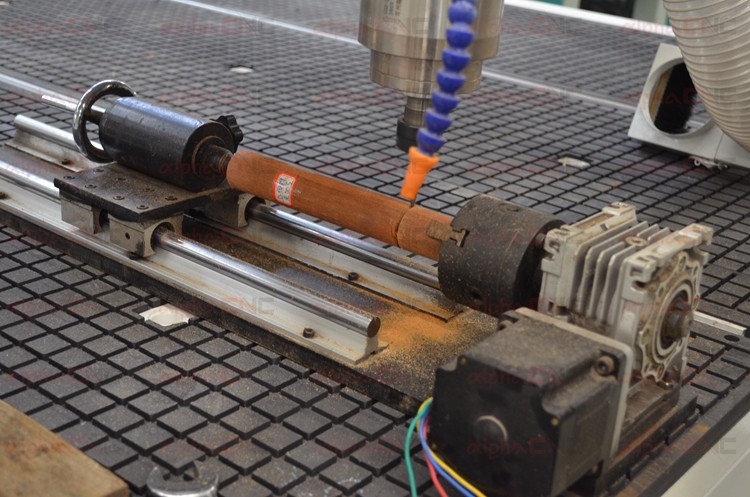

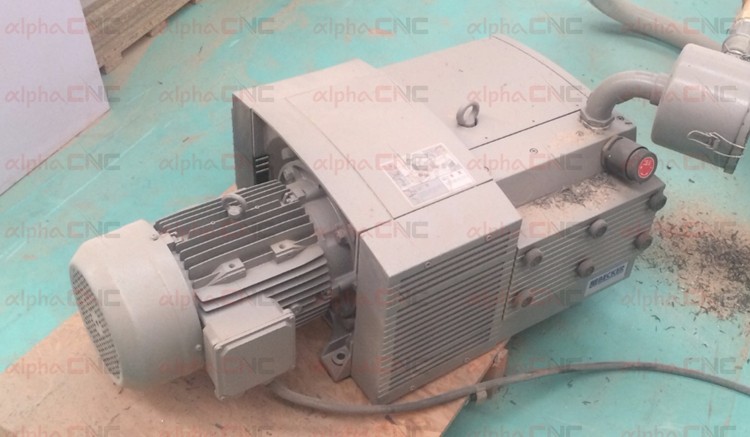

Optional Parts  Becker Rotary Vane vacuum pumps Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance. 4-Axis Rotary Axis  The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions. HSD Aggregate Tool
Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router. Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery

Packaging
Size	3200 (L) * 2300 (W) * 1900 (D)
Weight	1800kg
Packaging Details	The normal package is plywood box

Company Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

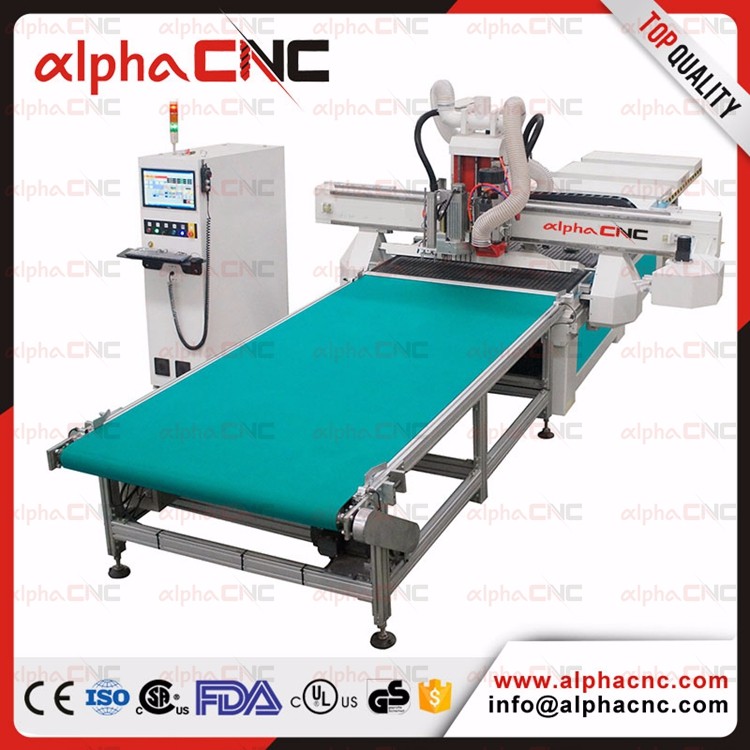

Agent and distributor wanted all over the world! Related Products 1325 1530 size 9kw HSD ATC spindle drilling bank automatic loading panel woodworking ATC cnc router nesting machine 91.8% Response Rate Factory high quality 1325 4*8ft sign advertising industry acrylic ABS double plate furniture wood mdf CNC router machine 91.8% Response Rate 4 axis cnc router with rotary axis multi-function for making wood furniture table chair legs 3d cnc router price 91.8% Response Rate
