Home > Products > ALL MODEL PRODUCTS > Metal Sheet/ Carbon Steel Fiber Laser Cutter/ Laser Cutting Machine

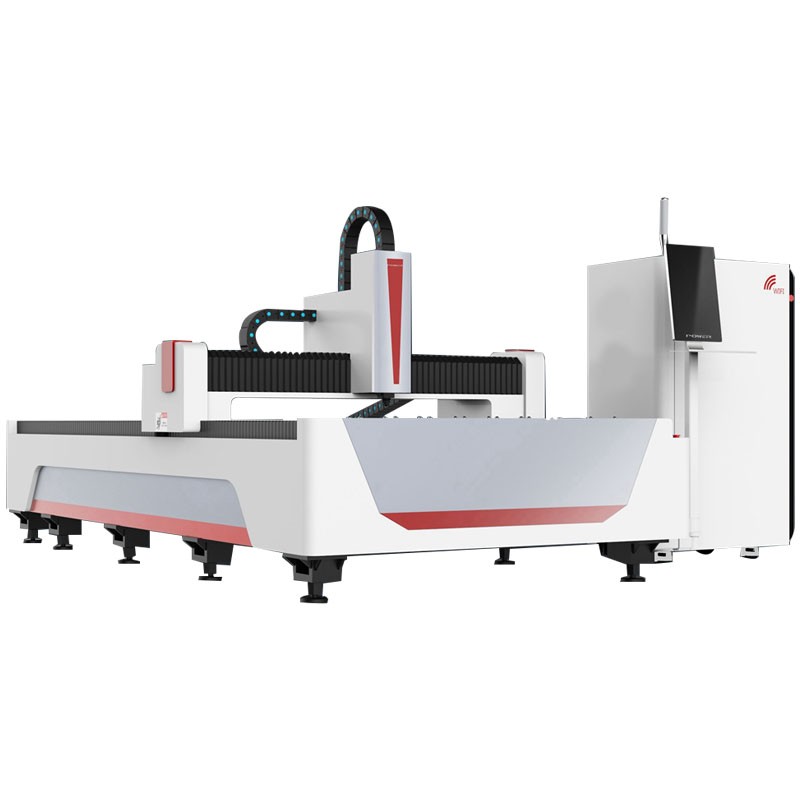

Metal Sheet/ Carbon Steel Fiber Laser Cutter/ Laser Cutting Machine

Product Description

Product Description Metal Sheet/ Carbon Steel Fiber Laser Cutter/ Laser Cutting Machine ATF-3015 Fiber Laser Cutting Machine is Alpha's new design, new design is designed by European designers, this machine more in line with modern aesthetics. This machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
Application Material
Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries:  Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Working Area


X axis working area


Y axis working area


Laser Power

500W/750W/1000W/1500W for option

Positioning accuracy


Repeatability positioning accuracy


XY Axis Maximum Acceleration


XY Axis Max. speed


Working Table

Serrate working platform

XY Axis Transmission system

German helical rack and pinion

Z axis Transmission system

Taiwan TBI ballscrew

Cooling System
Industry water chiller

Power Supply Rated Voltage

3-phase 380V/50Hz or Custom made

Machine Weight

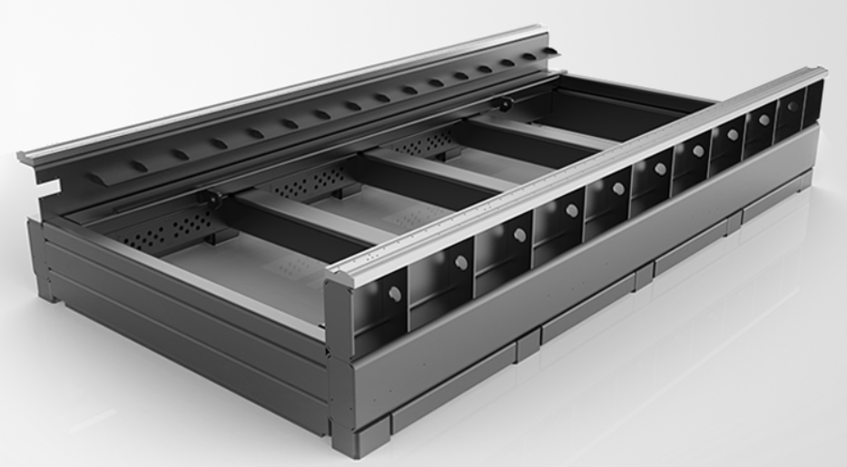

Detail show Heavy duty steel welded machine frame

The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.

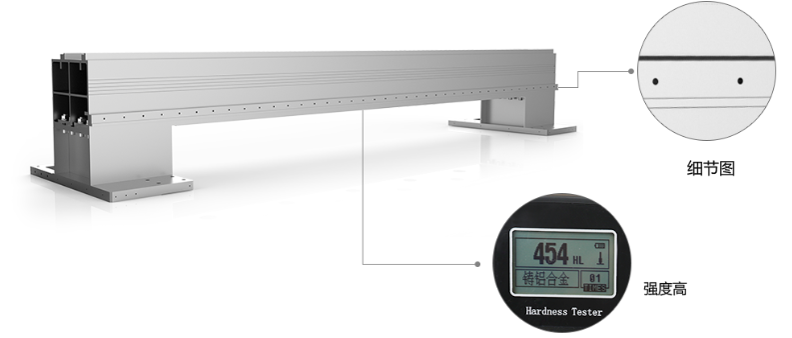

Heavy duty steel welded machine frame Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.

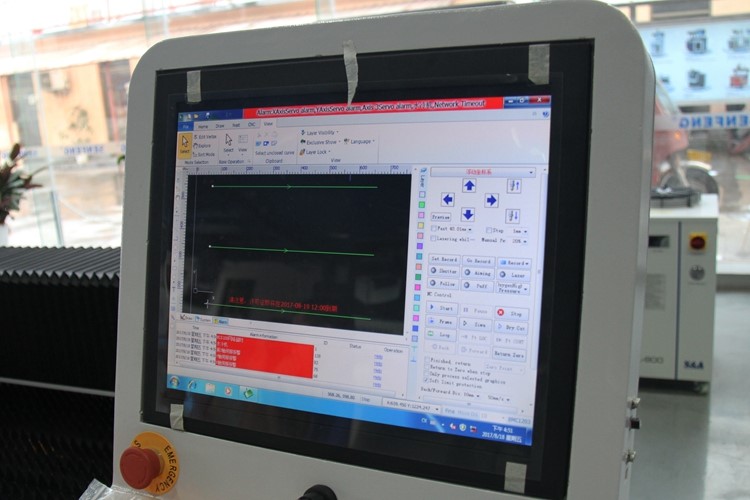

CypCut Controller

Support flight cutting, leapfrog, electric focusing, double exchange workbench
Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min
Maximum air movement speed 80m/min
Maximum acceleration 0.8G

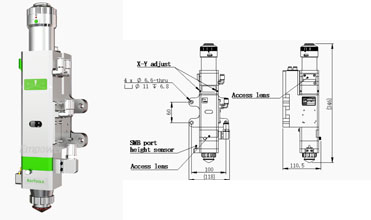

Switzerland Raytools laser head

The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long time.

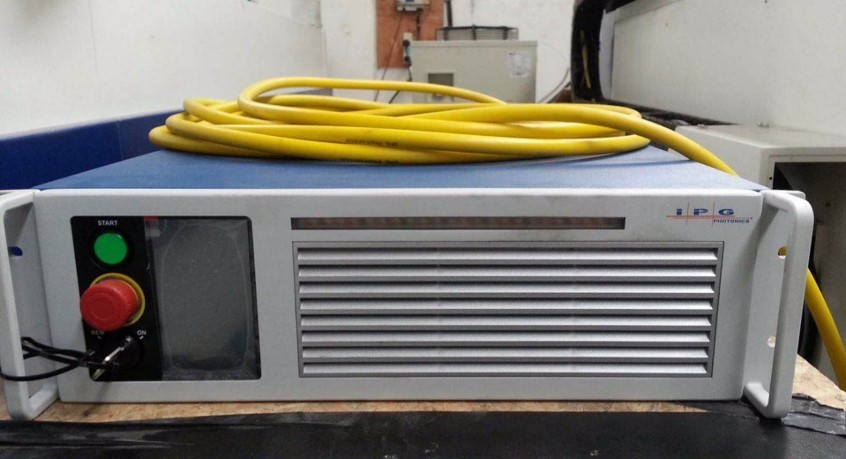

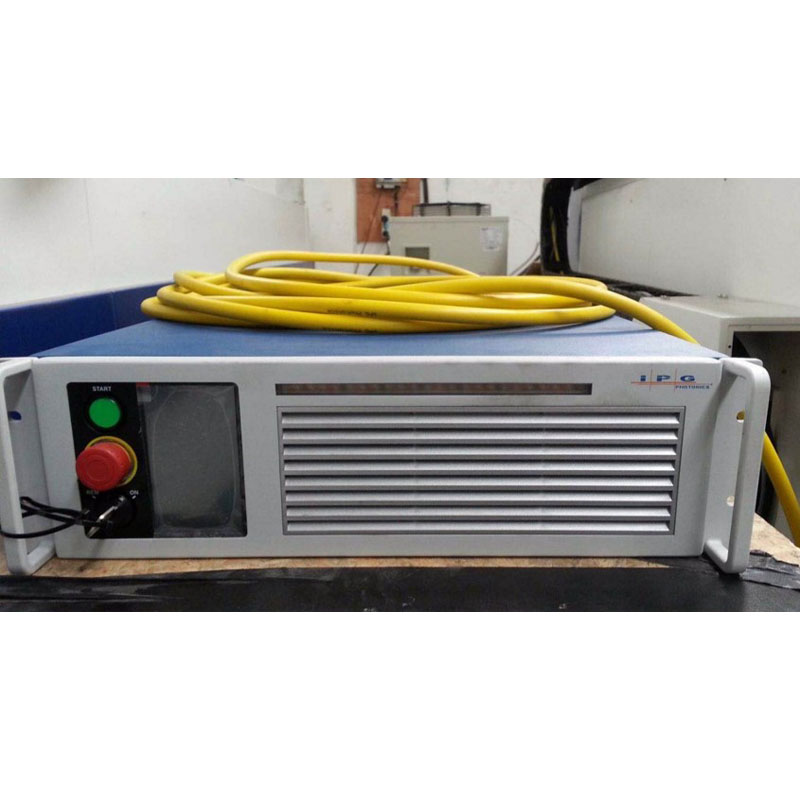

German IPG Laser

German IPG is a world-renowned fiber laser manufacturer with unparalleled advantages in cutting highly reflective materials. Make the cutting edge smoother.
Extremely high electro-optic conversion efficiency
Excellent stability
Excellent single mode beam quality
Stable beam pointing
Stable beam quality in the full power range
Direct modulation range kHz
Very low cost

Control Cabinet

All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

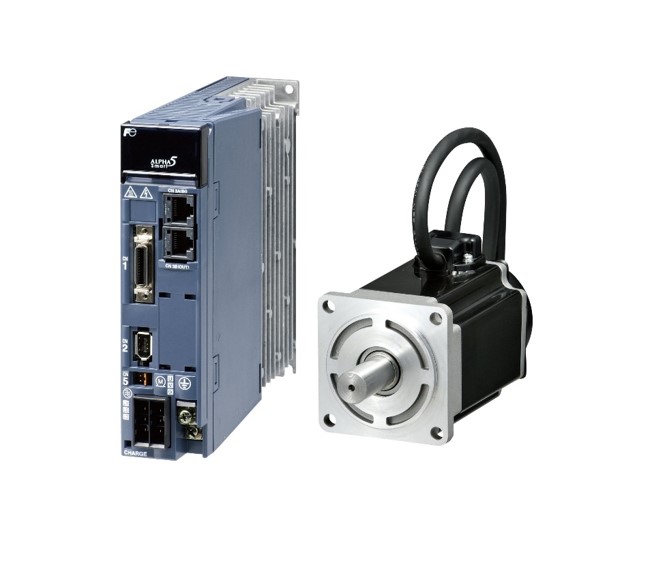

Japan Fuji servo motor

Composed of: servo drives and the servos move in all axes.
With this motor, the machine can realize high-precision machining at high speed.

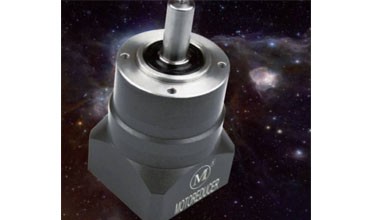

France MOTOVARIO Gear reducer

France MOTOVARIO Gear reducer is with high transmission efficiency, low energy consumption and superior performance. Service life is much longer.

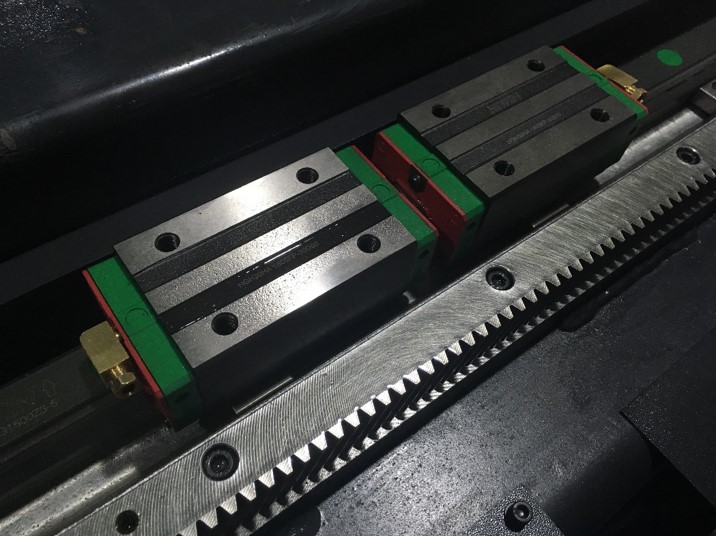

XY Axis Taiwan Hiwin squre rail
&Rack Transmission system

The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant.

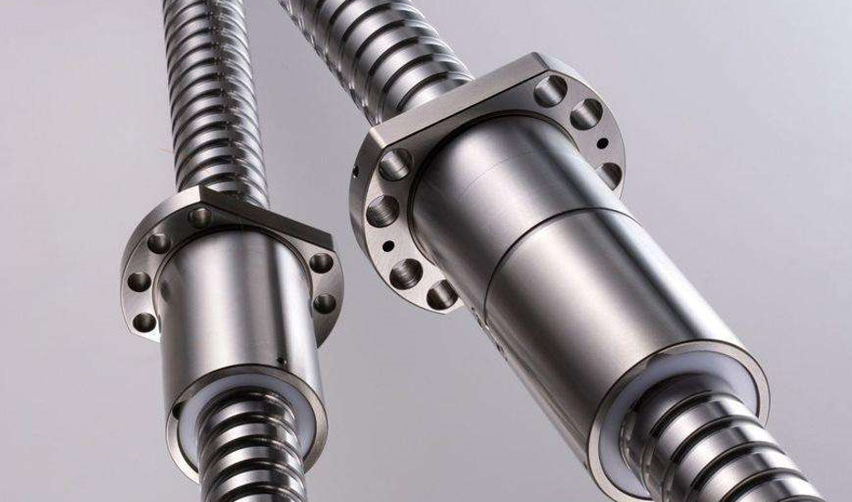

Taiwan TBI ball screw on Z axis

As the top brand of the ball screw, TBI ballscrew is famous for the high precision, and long service life.

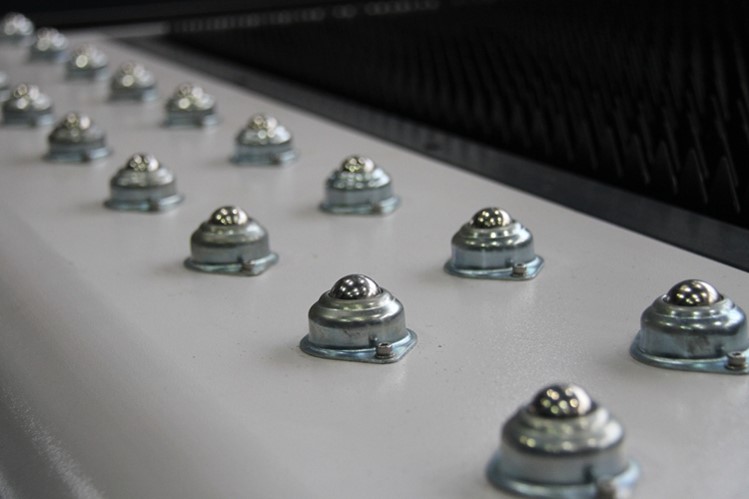

Feeding roll

The machine comes with the feeding roll. The feeding roll will help the worker feed the material easily.

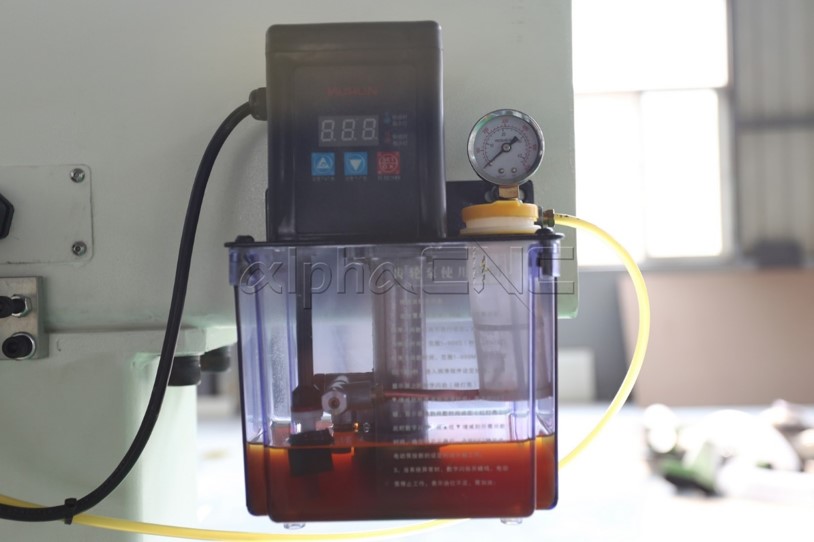

Automatic lubrication system

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.

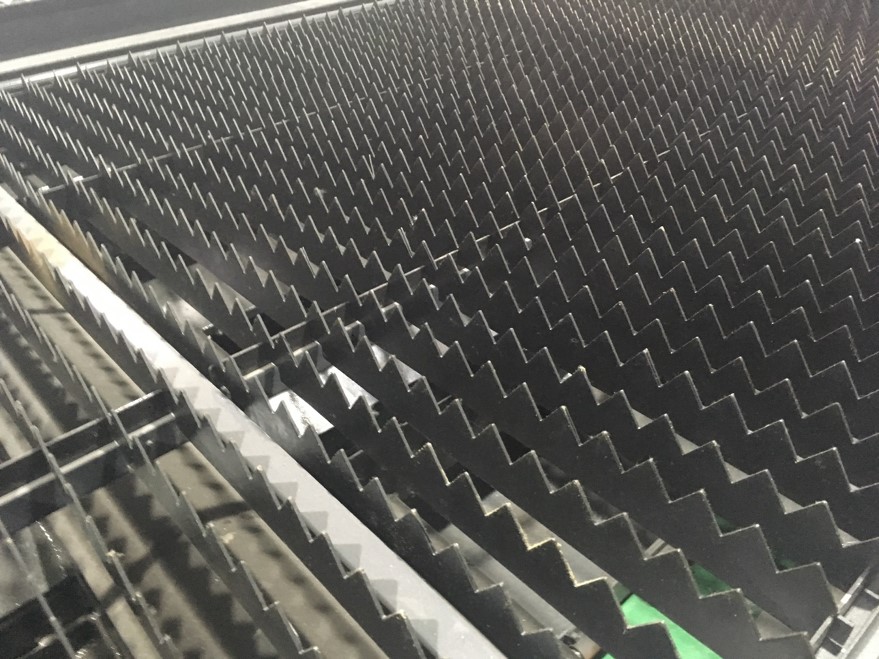

Serrate working platform

Serrate working platform

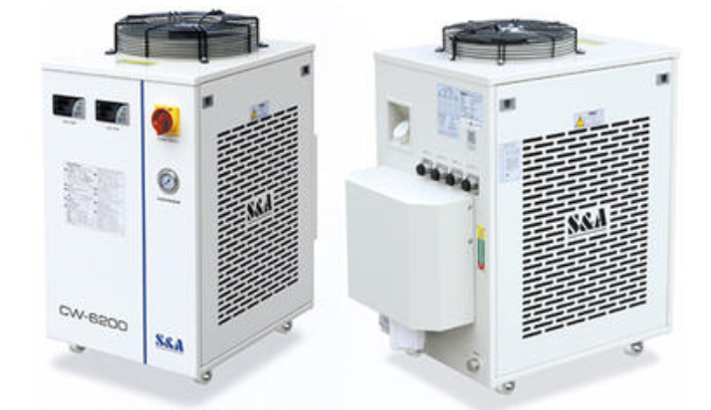

Water chiller CW6200

Water chiller CW6200

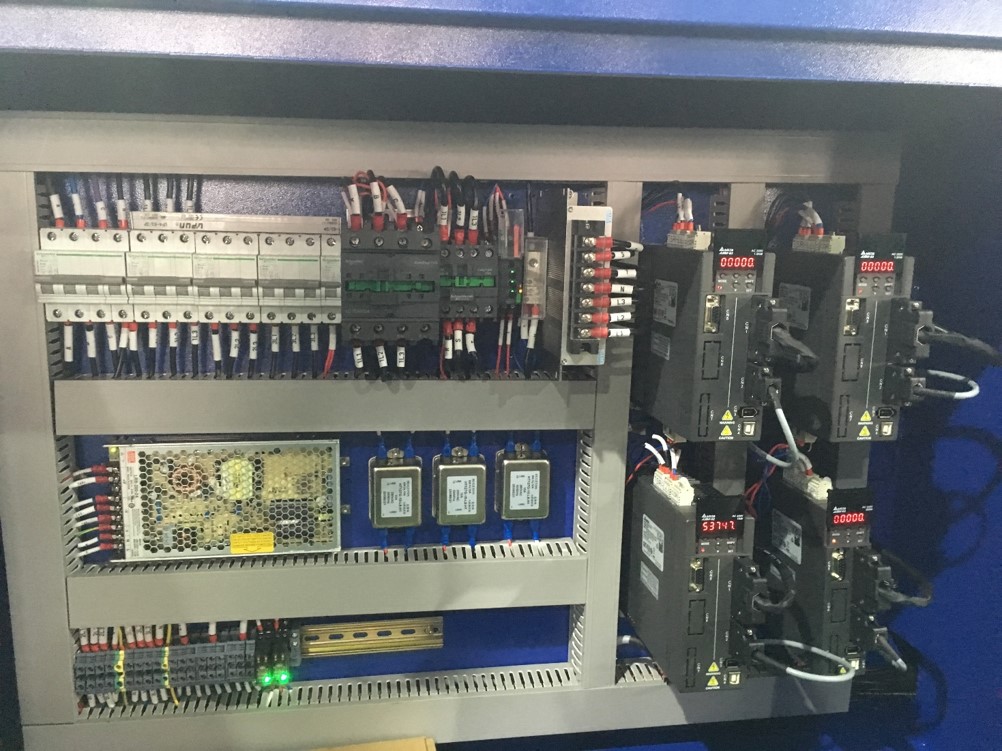

Control Cabinet

All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.

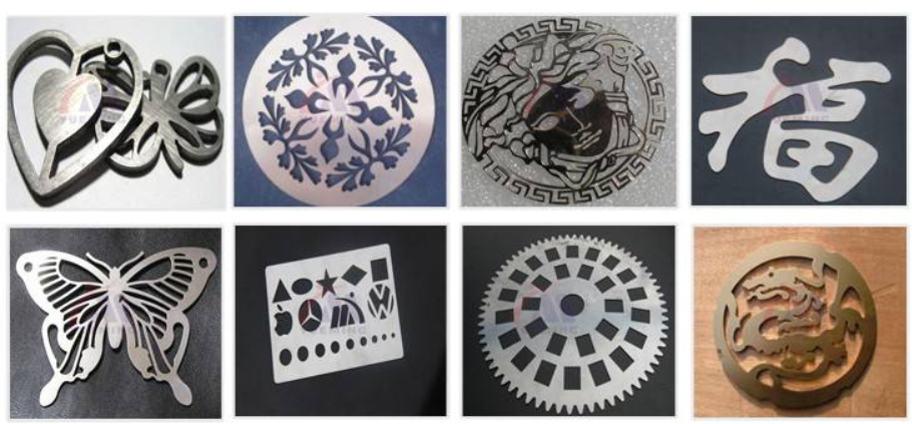

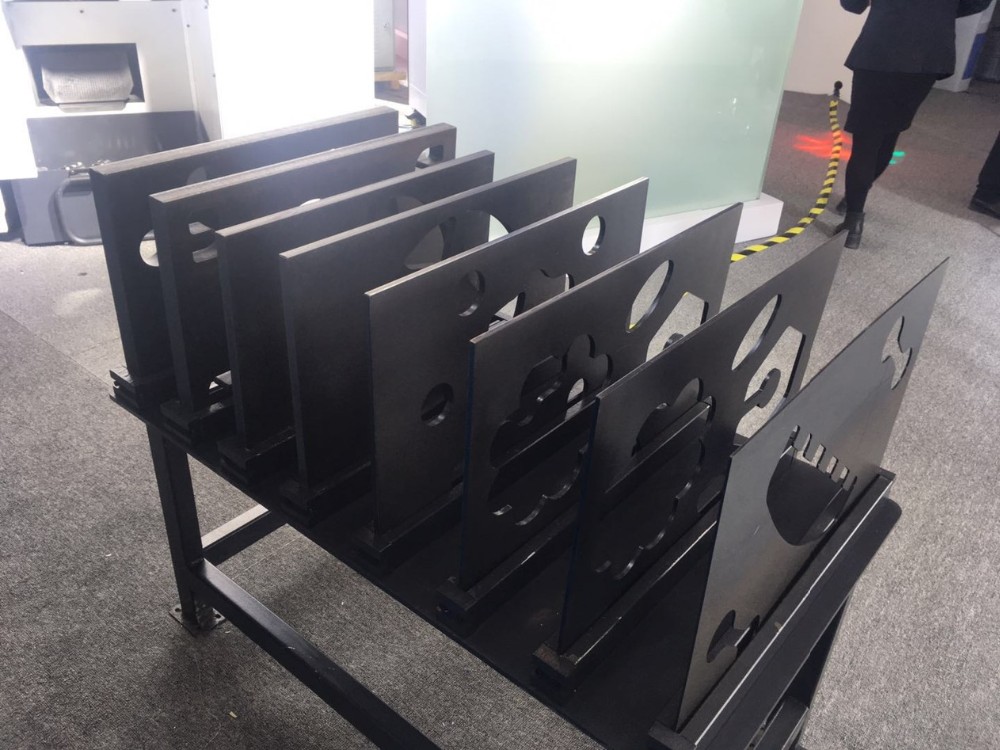

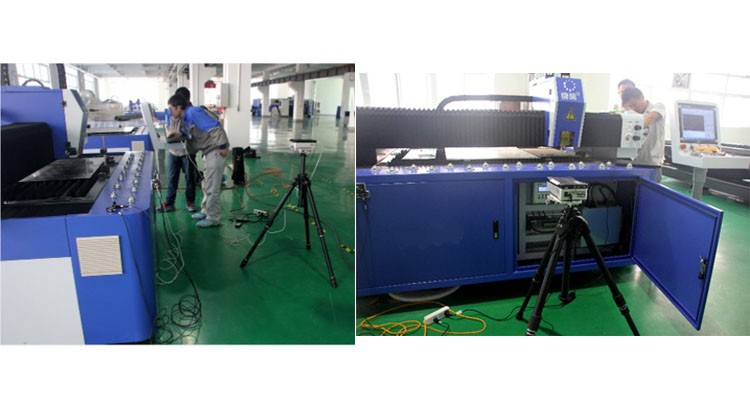

Samples Strict Quality Test Each of the small parts have been tested by the quality department

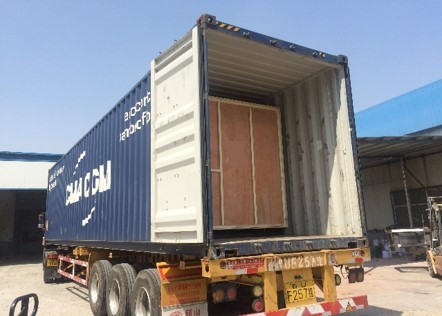

Packing & Delivery

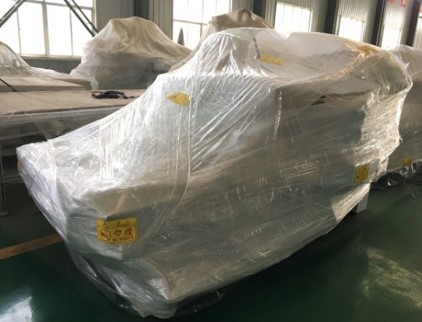

Step 1. Pack the machine with plastic sheet for clearing and damp proofing.

Step 2: Put the machine in the plywood case for safety

Step 3: Transport the plywood case into the container.

Certifications Our Company  Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.

Agent and distributor wanted all over the world!

Contact us if you need more details on metal sheet\/ steel laser cutter\/ laser cutting. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Carbon Steel Metal Fiber Laser Cutting Machine、carbon steel metal cut fiber laser cutting machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
