3000*1500Mm Working Area Jinan Aluminum 6Kw Fiber Laser Cutting Machine Air Filter

Product Description

Product Description 3000*1500Mm Working Area Jinan Aluminum 6Kw Fiber Laser Cutting Machine Air Filter

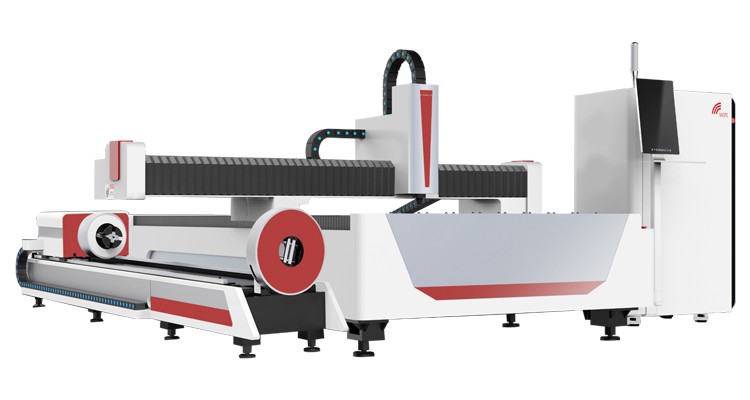

ATF-3015 fiber laser cutting machine is Alpha's new design, new design is designed by European designers, this machine more in line with modern aesthetics. This machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

Application Material
Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries:  Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Working Area


X axis working area


Y axis working area


Laser Power

500W/750W/1000W/1500W for option

Fiber Laser Generator Brand
Max, Raycus, IPG, GW, nLIGHT for option
Positioning accuracy


Repeatability positioning accuracy


XY Axis Maximum Acceleration


XY Axis Max. speed


Working Table

Serrate working platform

XY Axis Transmission system

German helical rack and pinion

Z axis Transmission system

Taiwan TBI ballscrew

Cooling System
Industry water chiller

Power Supply Rated Voltage

3-phase 380V/50Hz or Custom made

Machine Weight




Detail show Heavy duty steel welded machine frame

The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.

Heavy duty steel welded machine frame Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.

CypCut Controller

Support flight cutting, leapfrog, electric focusing, double exchange workbench
Trajectory accuracy 0.05mm, positioning accuracy 0.01mm
Cutting speed 30m/min
Maximum air movement speed 80m/min
Maximum acceleration 0.8G

Switzerland Raytools laser head

The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long time.

Max Laser Generator

Max is famous fiber laser manufacturer, the product quality is reliable.
Extremely high electro-optic conversion efficiency
Excellent stability
Excellent single mode beam quality
Stable beam pointing
Stable beam quality in the full power range
Direct modulation range kHz
Very low cost
Control Cabinet

All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

Japan Fuji servo motor

Composed of: servo drives and the servos move in all axes.
With this motor, the machine can realize high-precision machining at high speed.

France MOTOVARIO Gear reducer

France MOTOVARIO Gear reducer is with high transmission efficiency, low energy consumption and superior performance. Service life is much longer.

XY Axis German Rexroth Square Rail
&Taiwan YYC Rack Transmission system

The machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.
The rack and pinion on XY axis is from German.The high hardness of the material makes the rack more wear resistant.

Taiwan TBI ball screw on Z axis

As the top brand of the ball screw, TBI ballscrew is famous for the high precision, and long service life.

Feeding roll

The machine comes with the feeding roll. The feeding roll will help the worker feed the material easily.

American Bijur Delimon Automatic lubrication system

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.

Height adjustment Foot base

The main function of the foot base is to adjust the height of the machine by adjusting the height of the foot base. This function is essential for uneven ground.

Constant temperature air conditioner inside of the control box

The main function of the electric control cabinet air conditioner is to maintain the constant temperature inside the cabinet. Especially for areas that are too hot or too cold, it can extend the life of electrical components in the cabinet and ensure the normal working of electrical components.

Big Independ Control Cabinet

Control panels, drivers, and other low voltage components are installed in the control cabinet. Larger space helps to place and dissipate electrical components. It can prevent interference to the greatest extent.

Alignment material function

The alignment material function is mainly for align the material easily.

Serrate working platform

The steel serrated table can withstand heavier work pieces and has only a small area to touch the workpiece when cutting, maximizing the melting of the table surface by the heat of the laser.
Each piece is independent for easy replacement and maintenance.

Water chiller

The function of the water cooler is to reduce the temperature of the laser generator and prevent the laser from being burned out. We only use brand-name water coolers with reliable quality.

Samples Strict Quality Test Each of the small parts have been tested by the quality department
More Styles More Pictures with Rotary axis
Packing & Delivery
Step 1. Pack the machine with plastic sheet for clearing and damp proofing.

Step 2: Put the machine in the plywood case for safety

Step 3: Transport the plywood case into the container.

Certifications Our Company  Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.

Agent and distributor wanted all over the world!

Contact us if you need more details on jinan laser cutting machine air filter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about jinan aluminum laser cutting machine、jinan 6kw fiber laser cutting machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
