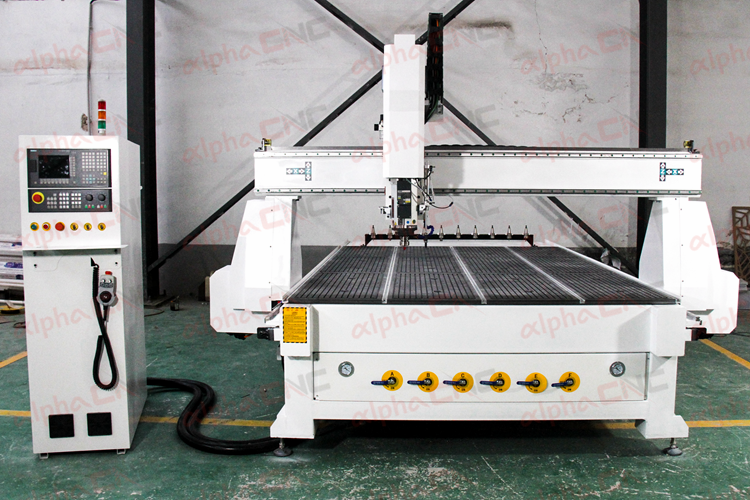

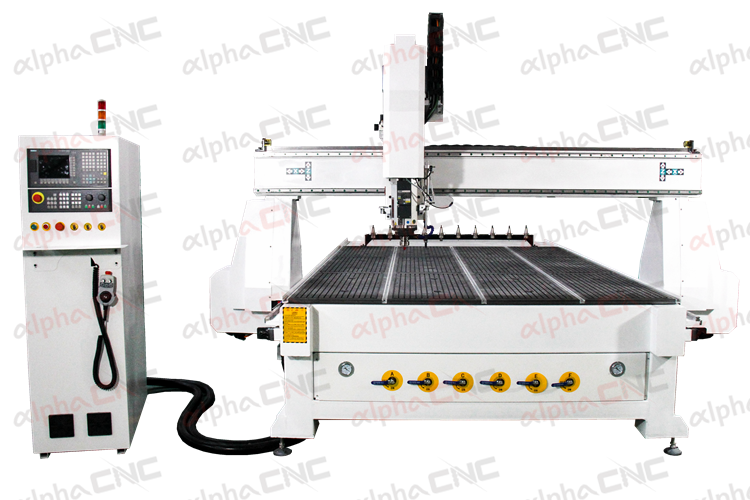

Big size German Siemens controller ATC cnc router

Product Description

Product Description German Siemens controller Siemens servo motor 10 tools top quality ATC cnc router for wood aluminum mdf plastic cutting milling
Introduction:  Alpha CNC Systems ATC CNC Router is manufactured using global state-ofthe-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Key features are a 12 HP Italy HSD high frequency automatic tool changer spindle with 10-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum t-slot table. The system includes German Siemens servo motors and controls with a German Siemens controller.

It can process wood, MDF, particleboard, plywood, acrylic, plastic, soft metal and many other different materials.

Main Features ※ Italy HSD 9kw(12HP) high frequency automatic tool changer spindle
※ German Siemens controller
※ Maintenance free 1kw German Siemens AC servo motors and drives
※ Automatic tool calibration pa
※ 6-zone vacuum T-slot table※ Fan-cooled rotary vane vacuum pump
※ PMI 25mm square rail
※ Pneumatic material placement stops
※ Hand-held pulse generator
※ Japan Shimpo gear reducer(for option)

Descriptions
                                                                     Parameters
Model
A-1325
A-1530
A-2030
A-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan PMI Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
Max. Rapid Travel Rate
60000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9kw Italy HSD (China HQD Optional)
Spindle Speed
0-24000RPM
Drive Motors
German Siemens
Working Voltage
Custom made
Command Language
G Code
Operating System
German Siemens
Computer Interface
USB interface
Collet
ISO30
Inverter
Taiwan DELTA 11kw
Software
Vectric Aspire/Type 3 /Artcam /Ucancam
Please kindly note the above configuration is standard configuration.  Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.  1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router

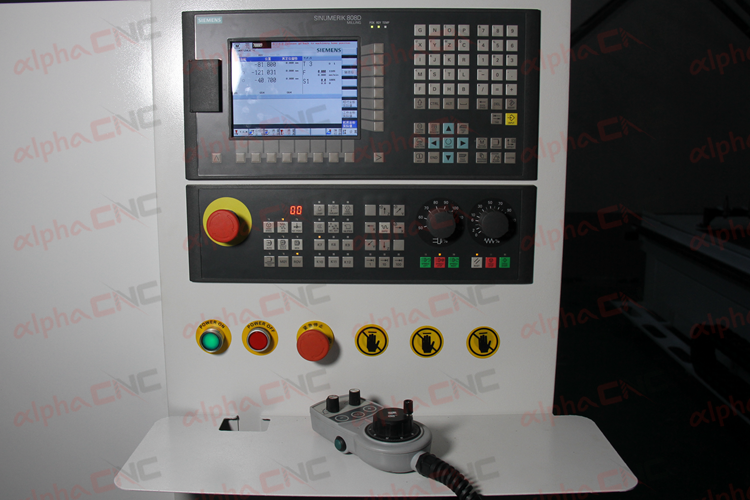

Sample Detailed Images German Siemens SINUMERIK 808D Controller Brand: Siemens
Origin: German
Thanks to its panel-based CNC design requiring only few interfaces and an operator panel with degree of protection IP65, the SINUMERIK 808D / 808D ADVANCED is perfectly prepared for the use in harsh environments. With its small dimensions, it can be used on compact machines. At the same time, the SINUMERIK 808D / 808D ADVANCED allows convenient operation with short-stroke keys and the well-known SINUMERIK softkeys.

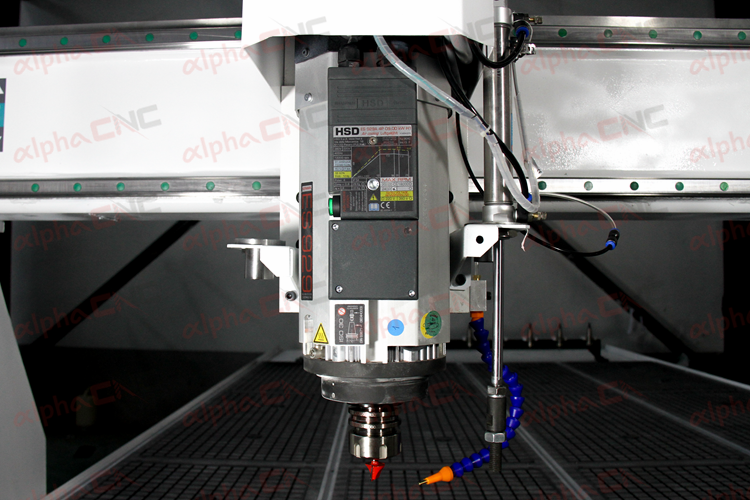

Italy HSD 12HP(9KW) Automatic Tool Changer Spindle
The Alpha ATC CNC Router machine comes standard with a 12 HP HSD high frequency automatic tool changer. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders, has fully programmable speeds from 6000 to 24000 RPM, and comes complete with a pneumatically retractable vacuum hood.

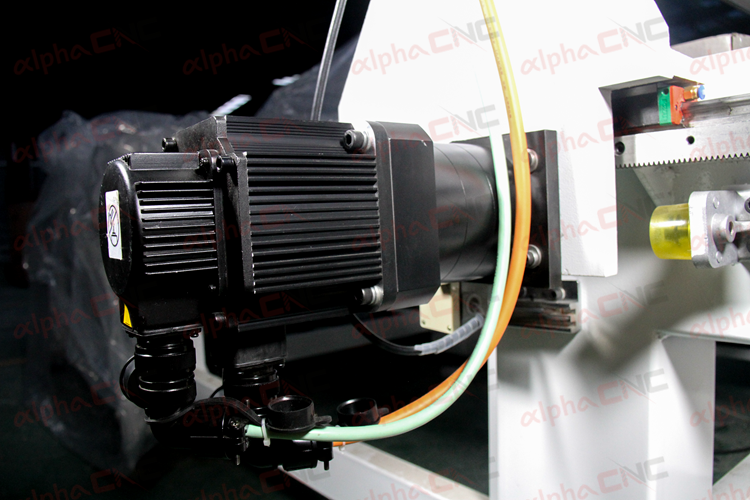

1KW German Siemens AC servo motors and drives
Brand: Siemens
Origin: German The Alpha ATC CNC Router features 1 kW German Siemens AC servo motors and drives that are directly coupled to the drive pinion for the X and Y axes. This ensures high powered, smooth precision motion.

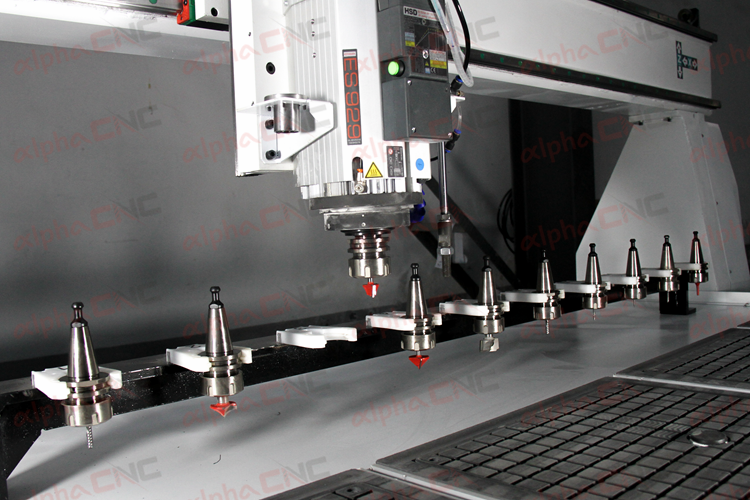

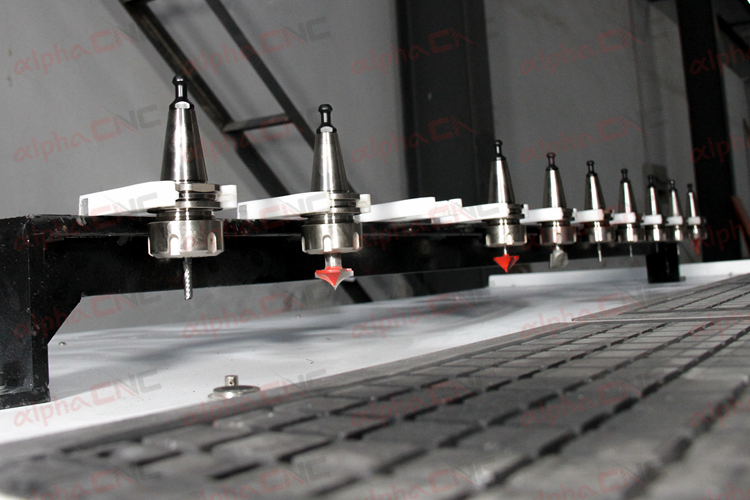

Tools The machine includes a 10-position tool rack in the rear of the machine. The position of this rack allows for easy loading and unloading of material from either side of the machine.

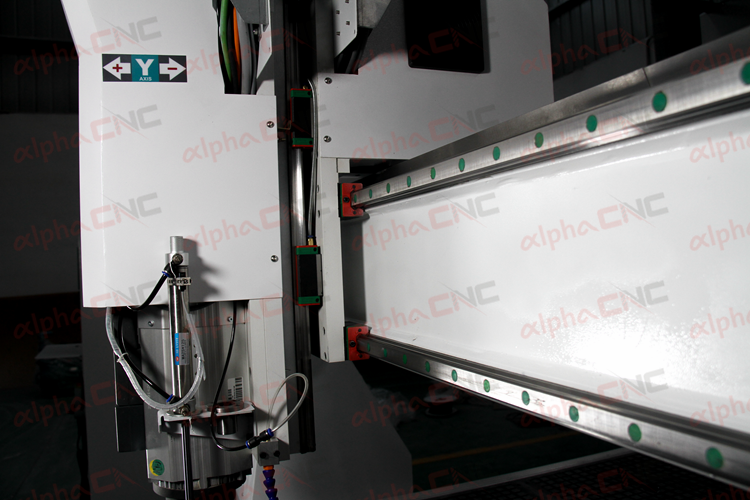

PMI/Hiwin square rail The machine adopts Taiwan PMI 25mm width square rail, which is more than twice durable.

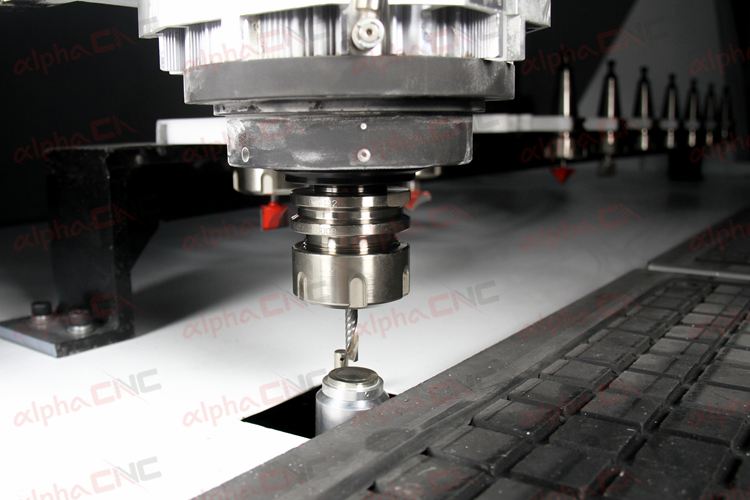

CNC Tool Calibration
Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

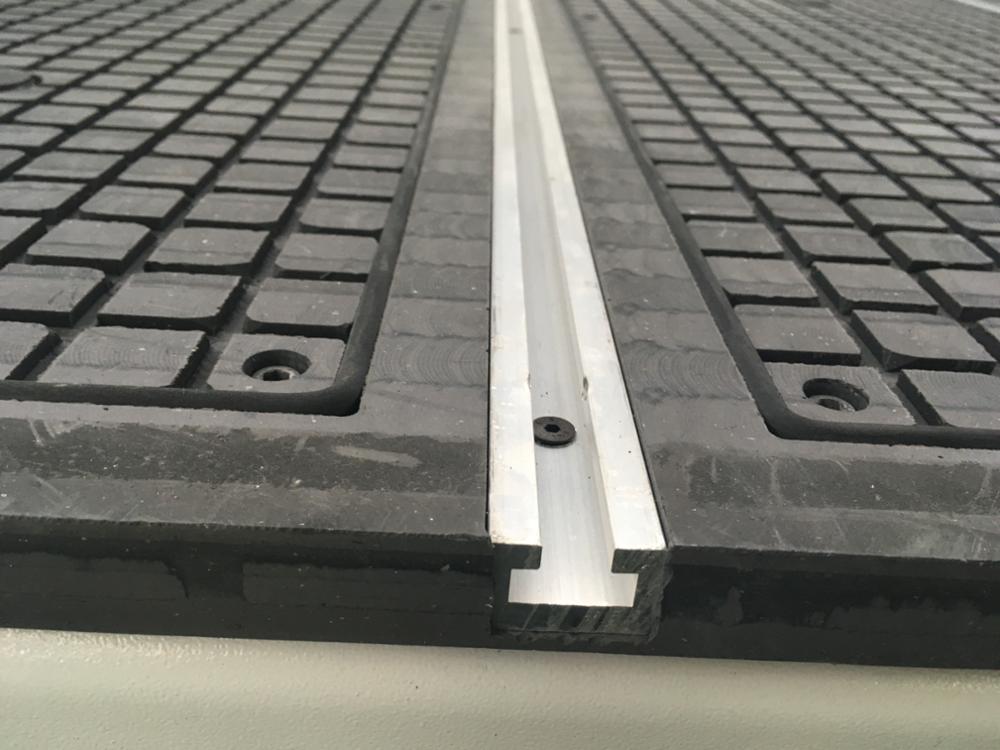

Vacuum table The vacuum plenum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing,( 57814690,which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles.

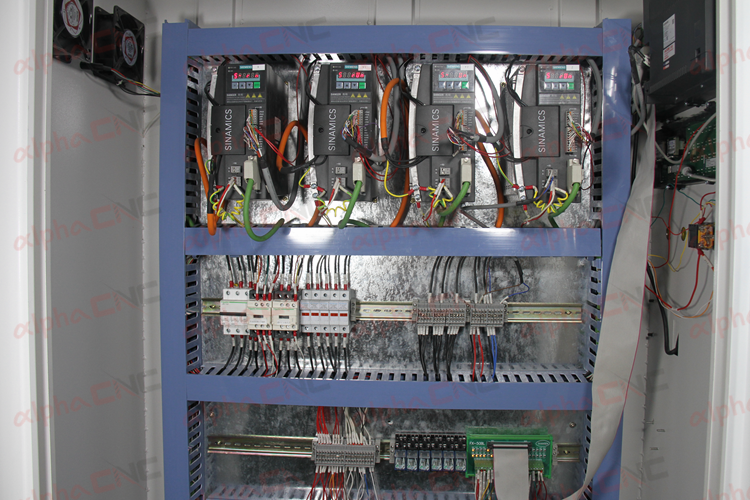

High Powered CNC Router Electronics  All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

Vectric Aspire Software Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.

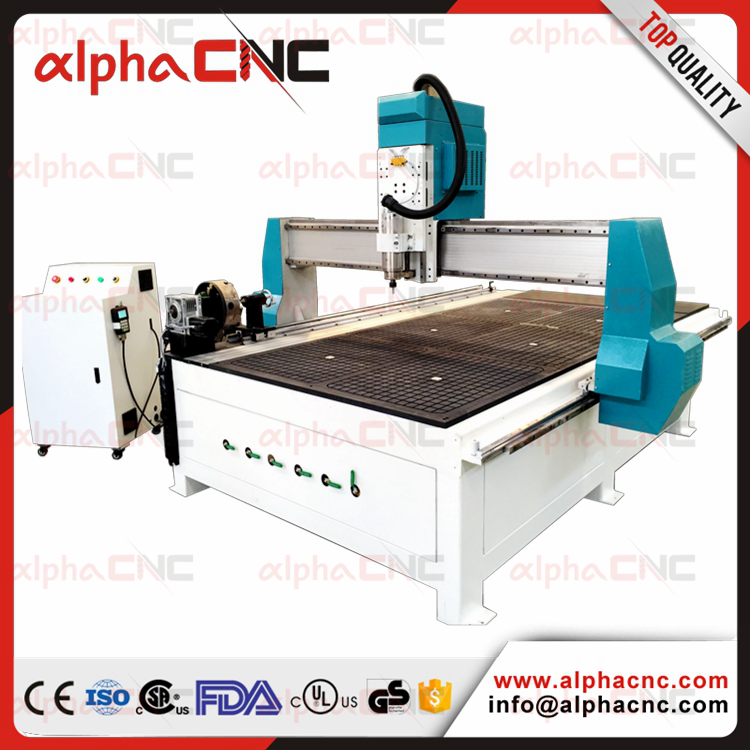

Optional Parts  Becker Rotary Vane vacuum pumps Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance. 4-Axis Rotary Axis  The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions. HSD Aggregate Tool
Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router. Customer Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
2500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
