ATC automatic loading panel woodworking ATC cnc router nesting machine for cabinet

Product Description

Product Description ATC automatic loading panel woodworking ATC cnc router nesting machine for cabinet
Product Application This machine is with automatic tool change/drilling bank/automatic uploading&unloading system
This series  CNC Production Work Cell features automated loading and unloading of the sheet materials bringing high-volume cabinetry to the woodworking industry and high-volume sheet fabricationto the plastics industry.
Main Features #9kw Spindle  #Automatical loading and unloading system
#Maintenance free brushless AC servo motors and drives
#Automatic tool calibration pad
#6-zone vacuum table
#Pneumatic material placement stops
#Syntec industrial AC servo controller
#Hand-held pulse generator
#FAM/HSD/HITECO drill bank for option
Descriptions
                                                                     Parameters
Model
AIS-1325-D-L
AIS-1530-D-L
AIS-2030-D-L
AIS-2040-D-L
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel Square Tube Heavy structure , 10mm thicken steel
X, Y Structure
Gear and rack transmission, Taiwan HIWIN Linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Max. Rapid Travel Rate
60000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9KW HSD or Hiteco(12KW for Option)
Spindle Speed
0-24,000RPM
Drill Bank
Italy FAM/HSD/HITECO for Option
Automatic loading unloading system
For optional
Drive Motors
Japan Yaskawa Servo motor and driver
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V or Customer made)
Command Language
G Code
Operating System
Taiwan SYNTEC control system/German Siemens optional
Computer Interface
USB interface
Collet
ISO30
Inverter
Fuling/Sunfar/Taiwan DELTA 11kw
Software
Vectric Aspire/Type 3 /Artcam /Ucancam
Please kindly note the above configuration is standard configuration.  Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.  Sample Detailed Images Spindle  9kw Italy HSD or Hiteco air cooling Spindle. ISO 30, 0-24000rpm.  CNC Suction Cup Load System
The rear suction cup load system attached to the gantry can easily load a sheet on to the bed surface. As it loads, it automatically sweeps the deck clean of any debris assuring a clean scavenger board surface for maximum vacuum hold down as it processes each and every sheet.
Rear Scissor Lift The automation work cell includes a rear scissor lift which supports and raises the stack of material to the machine's vacuum bed height, which is monitored with optical eye-sensing stack material height and machine bed surface.
Conveyor Table Conveyor table is located at the front end of the machine.
Pneumatic Material Alignment Stops The  CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.
Fam/HSD/Hiteco Drill Bank(for option) 5 + 4 Vertical  or Other configurations are available upon request.

Electrical parts All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.
Drive Motors Brand: Yaskawa  Servo Motor  Origin: Japan  The ATC Series CNC Router utilizes AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime.

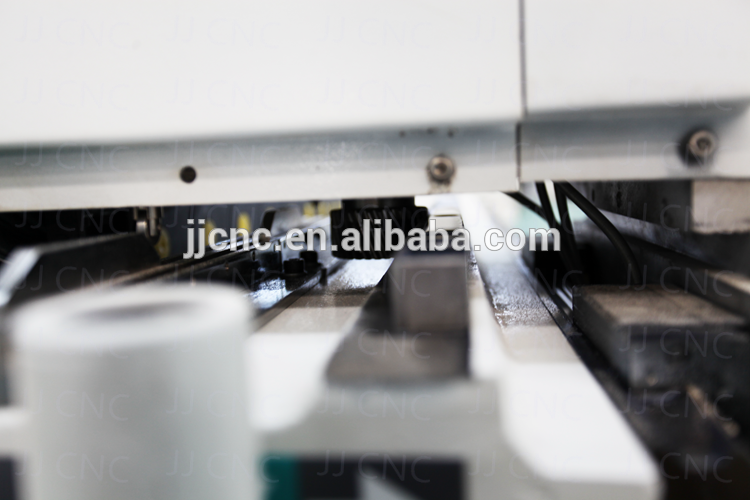

Drive Train Assembly The ATC Series uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.
Control System  Brand: Syntec(Siemens and  Nc-studio optional) Origin: Taiwan  Friendly interface, easy to learn to operate interface, accelerate the operation of learning
Customer Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery
Packaging
Size
3200 (L) * 2300 (W) * 1900 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
