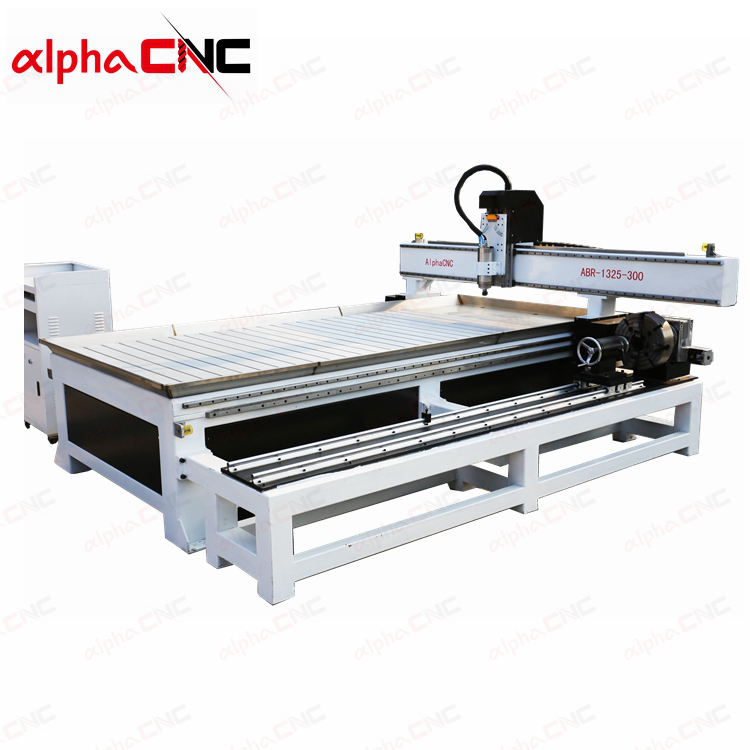

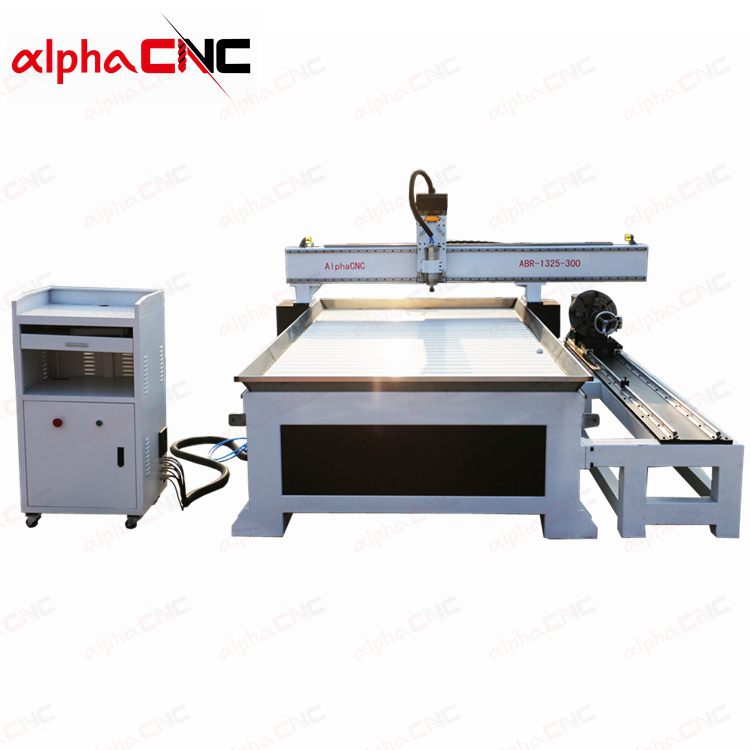

4 axis with big rotary axis cnc router machine for Decoration Industry water cooling system for wood, mdf, stone, aluminum
Product Description
Product Description 4 axis cnc router machine for Decoration Industry with big rotary axis, water cooling system for wood, mdf, stone, aluminum
Product Application * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Main Features ▷ 1300*2500mm, 1500*3000mm, and 2000*3000mm standard sizes (Special sizes available upon request.)
▷Rotary axis 80-300mm
▷ 3-7.5kw high-frequency collet spindle
▷Brushless microstepper motors.
▷ Automatic tool calibration easy and accurate “Z” zero position for single and multiple tool changes
▷ Multifunction Vaccum and Aluminum T-Slot table
▷ Easy to use Mach 3 controller with all industry standard CAD/CAM software
Please kindly note the above configuration is standard configuration. Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly. Sample

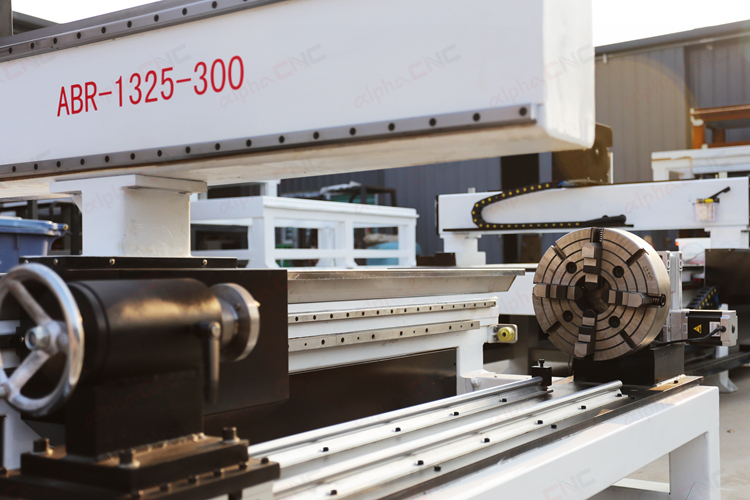

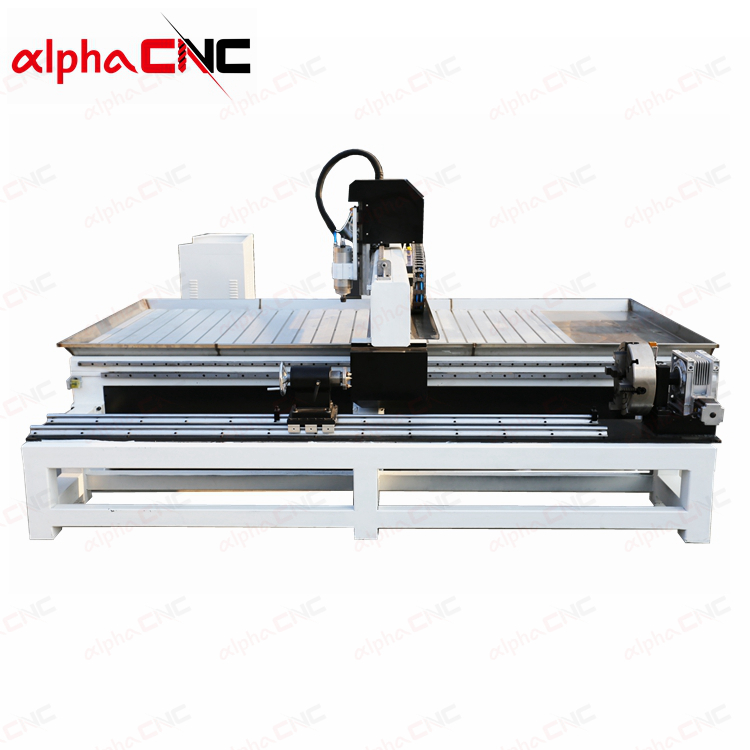

Detailed Images 4-Axis rotary table Alpha’s 4-Axis rotary table assembly comes complete with a 3-jaw chuck, tail stock, and linear guide track for easy tail stock movement and center alignment. The addition of Techno's 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
(Alpha has 0-80mm, 0-100mm, 0-150mm, 0-200mm diameter rotary axis for your choice)

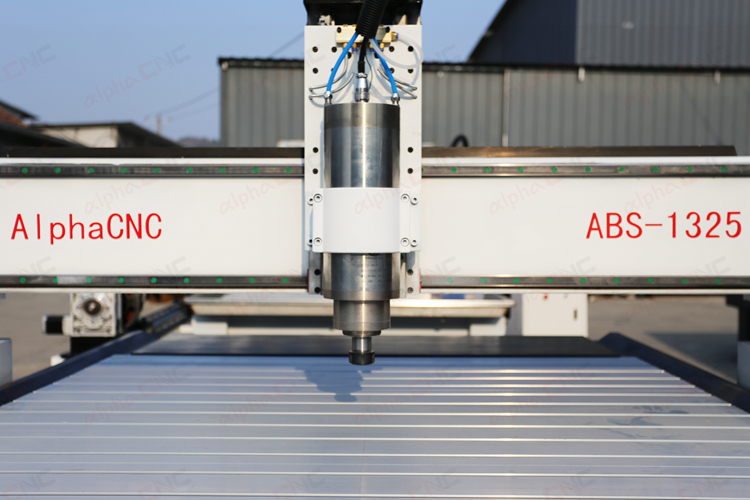

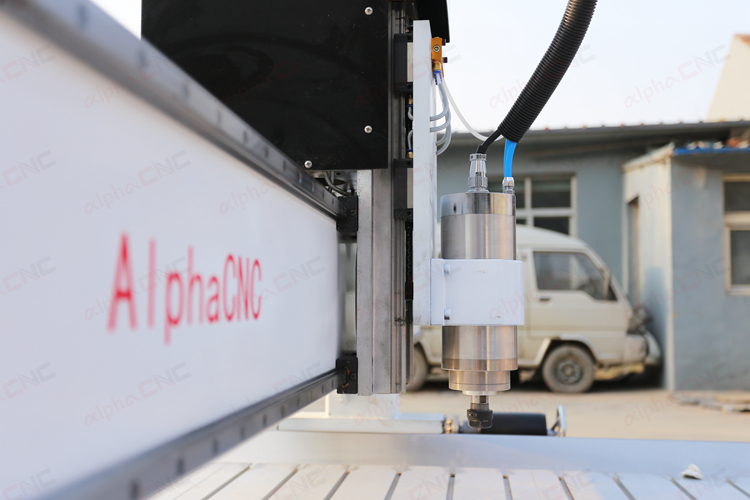

High Frequency Powerful spindle
The High quality BP series CNC Router machine comes standard with 3.2kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.
Machine Base Frame The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.
Mach 3 controller (Ethernet interface) Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.
Drive Motors
The High Quality BP Series CNC Router utilizes AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance — therefore, reducing any maintenance downtime.
Hiwin square rail&High quality helical rack pinion
The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality helical rack pinion, makes it high precision.
CNC Tool Calibration Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.
Vacuum and T-slot profile table The High quality BP CNC Router has a 1 inch thick phenolic vacuum table surface mounted onto the steel base frame, keeping a rigid and consistent platform for your sheets and parts to be supported. The vacuum table surface is multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing,( 57814710,which requires a smaller segmented area). Zones can be turned off easily via control valves on the front of the machine. Gasketing can also be routed to accommodate various material sizes and styles. Vectric Aspire Software Aspire is built on the same platform as Vectric's VCarve Pro software, sharing the intuitive interface and ease of use for production design and routing. In addition to the powerful drawing and production routing tools of VCarve Pro, Aspire also has tools to let you transform 2D sketches, photos, drawing and digital artwork into detailed 3D relief models and then to calculate 3D Roughing and Finishing toolpaths to accurately cut these shapes.
Optional Parts
CNC Router Vacuum Pumps 5.5kw (totally enclosed fan-cooled). Rotary Vane Vacuum Pump.
Dust Collector 3kw double bags dust collector, which is powerful enough for collect the. It will make your workshop without dust. Oil mist Coolant System
The Oil mist Coolant System is ideal for coolant tools for cutting metal. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity. Customer
Our Service
Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. Packing & Delivery
Company Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.
Agent and distributor wanted all over the world!
