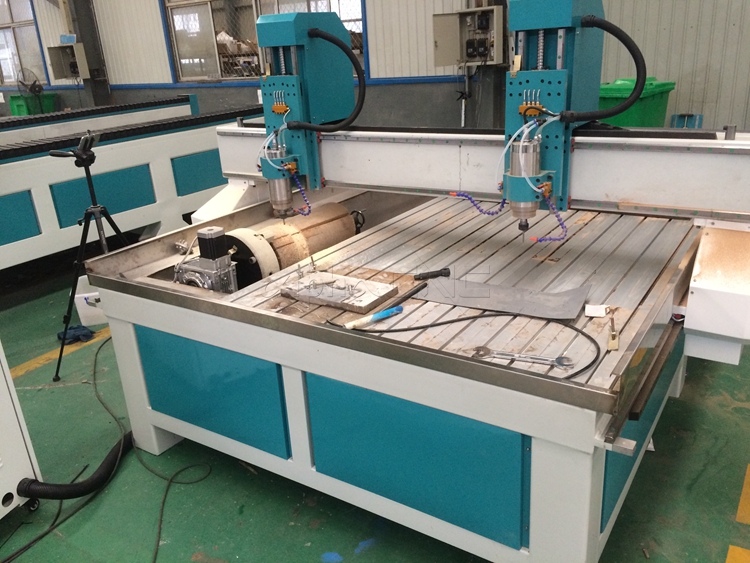

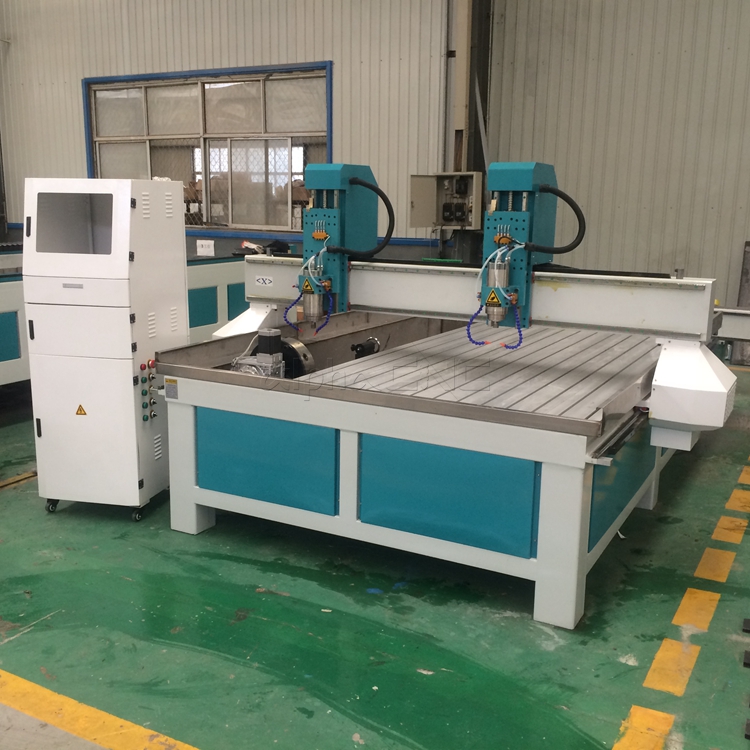

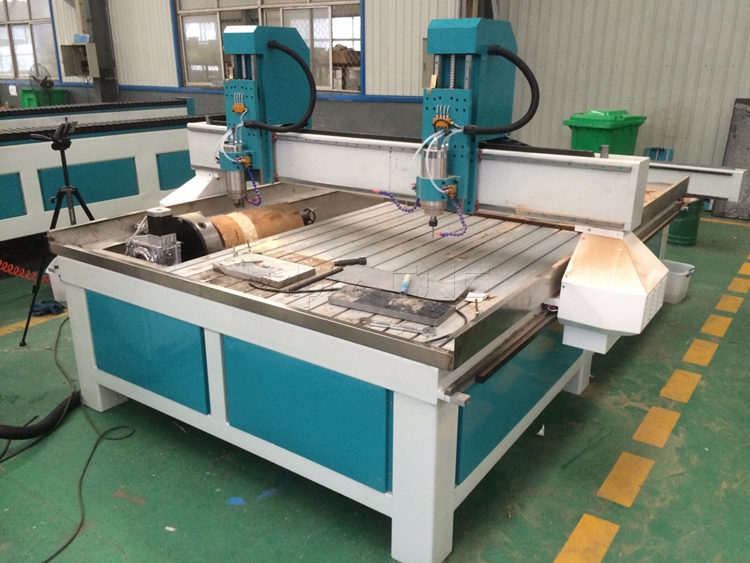

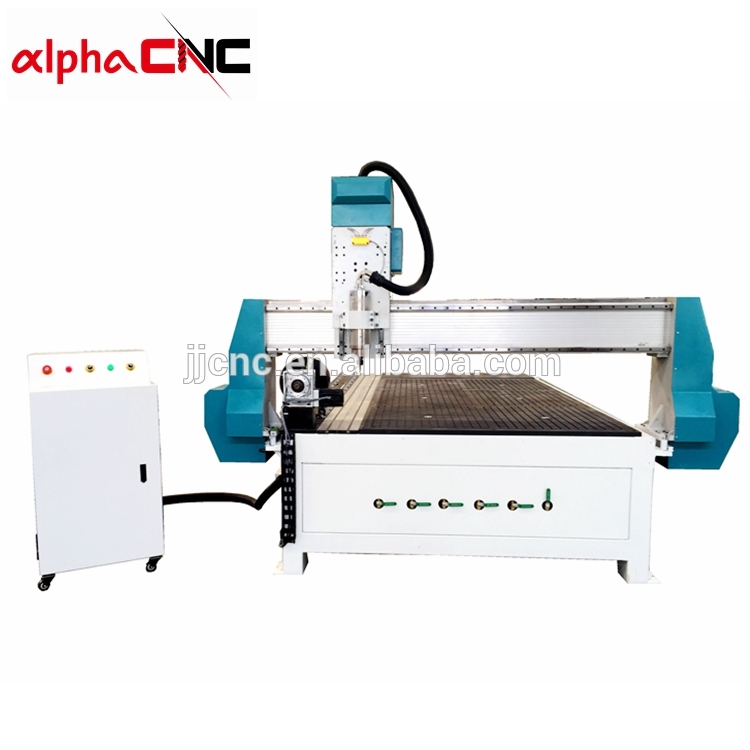

cnc router 4 axis with rotary axis 2 spindles, water tank for stone wood acrylic

Product Description

Product Description 4 axis cnc router with rotary axis 2 spindles water tank for stone wood acrylic Product Application * Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process. Main Features 1300*2500mm, 1500*3000mm, and 2000*3000mm, and 2000*4000mm standard sizes (Special sizes available upon request.)
Rotary axis 80-300mm for option
3.2kw-7.5kw high-frequency collet spindle for option
Brushless microstepper motors.
Automatic tool calibration easy and accurate “Z” zero tool changes
Aluminum T-Slot table
Easy to use Mach 3 controller Open architecture works with all industry standard CAD/CAM software
ADescriptions
                                                                     Parameters
Model
ABR-1325
ABR-1530
ABR-2030
ABR-2040
Custom made
Working area
1300*2500mm
1500*3000mm
2000*3000mm
2000*4000mm
Custom made
Rotary Axis
0-100mm, 0-150mm, 0-200mm, 0-250mm, 0-300mm
Accuracy
±0.03mm
Table Surface
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
Frame
Thicken steel square tube structure
X, Y Structure
Gear and rack transmission, Taiwan HIWIN linear Rail
Z Structure
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Max. Rapid Travel Rate
45000mm/min
Max. Working Speed
20000mm/min
Spindle Power
3.2kw spindle(4.5kw, 6kw for option)
Spindle Speed
0-24000RPM
Drive Motors
Leading shine stepper motor and driver(Yako driver for option)
Working Voltage
AC220V/50/60Hz,1PH (Option: 380V/415V/220V 3phase)
Command Language
G Code
Operating System
MACH 3 (DSP or Nc-studio for option)
Computer Interface
USB interface
Inverter
Taiwan DELTA (Fuling for option)
Software
ARTCAM/ Vectric Aspire
Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

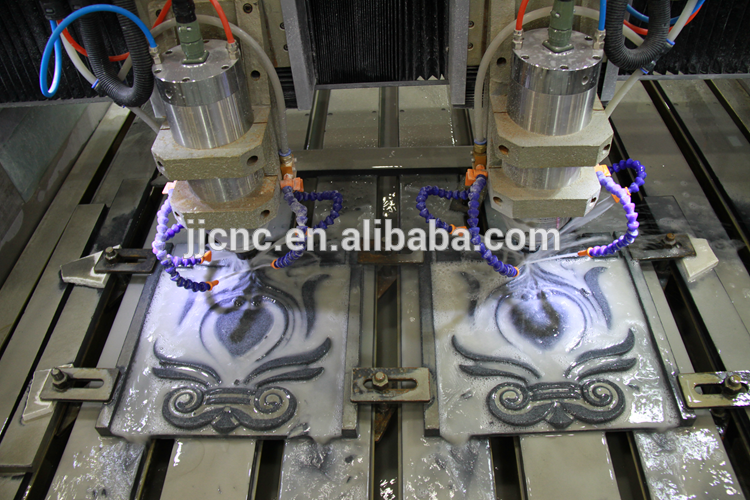

Sample Detailed Images Stainless Steel Water tank  When engraving the hard material such as stone and steel, water is needed for cool the cutter. The water tank can collect the used water and lead the water to the specified bucket, to prevent dirty water from flowing directly to the ground.

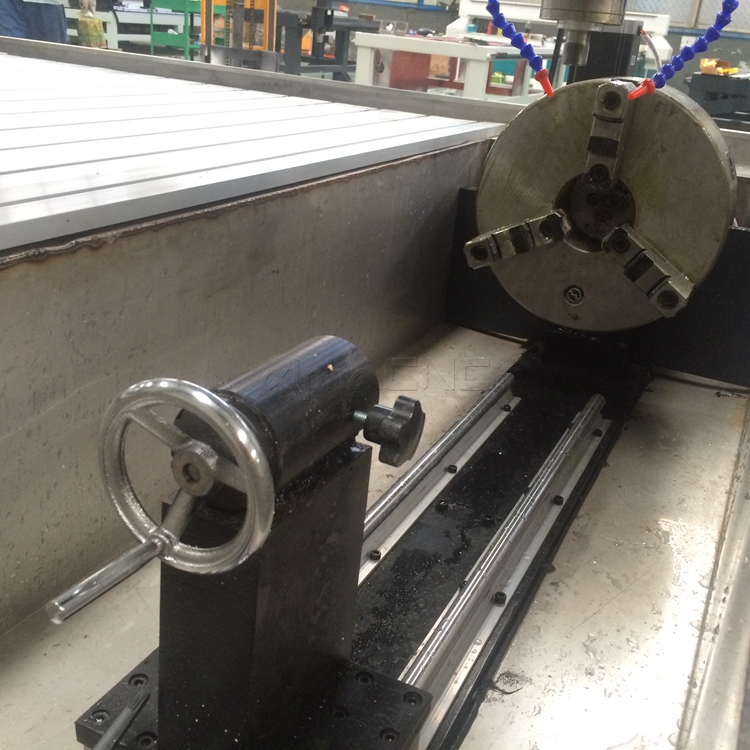

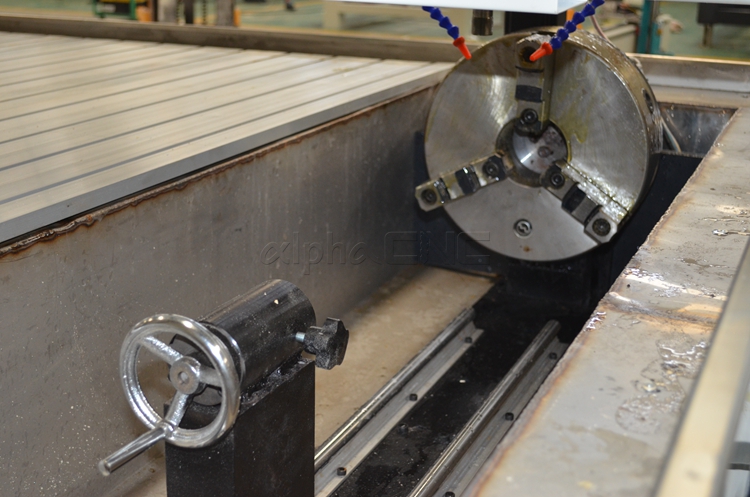

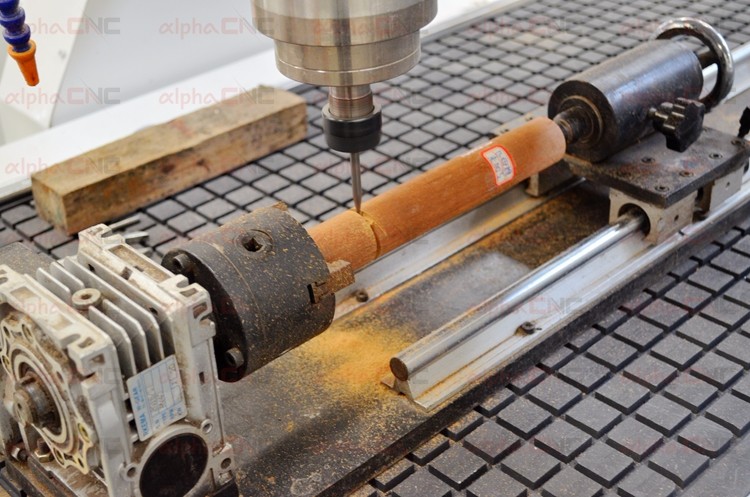

Rotary axis  The addition of 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
0-300mm for option  Mach 3 Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

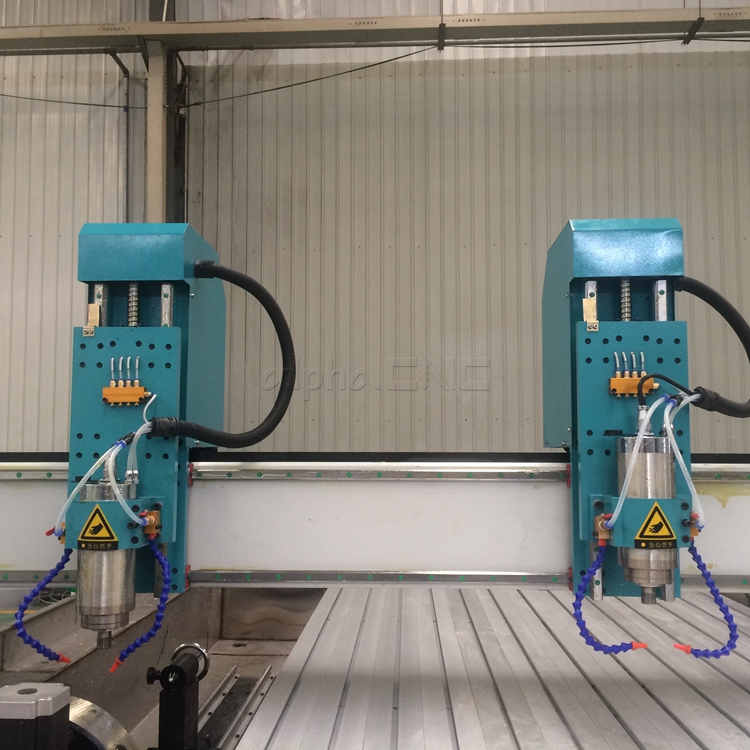

3.2kw High Frequency Collet Spindle
The ABR-1325 machine comes standard with a 3.5kw high frequency collect spindle. These precision spindles require no maintenance, use industry standard ER collets, fully programmable speeds from 6000 to 24000 RPM, and comes complete with vacuum hood / hose support system and wrenches.

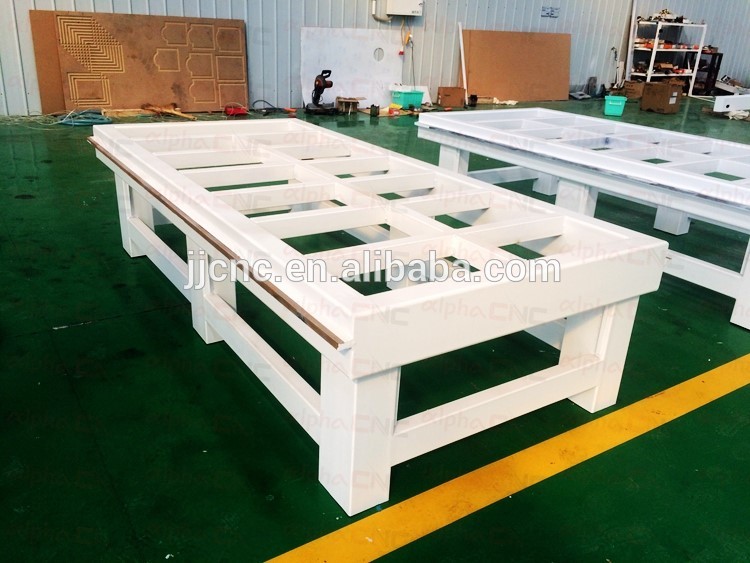

Base Frame The base frame is fabricated from heavy-duty tubular steel that is welded, precision machined and stress relieved so that the foundation remains true and steady over the operational life of the machine.





Drive Motors The  Alpha Series CNC Router utilizes brushless microstepper motors. These motors require no regular maintenance — therefore, reducing any maintenance downtime!

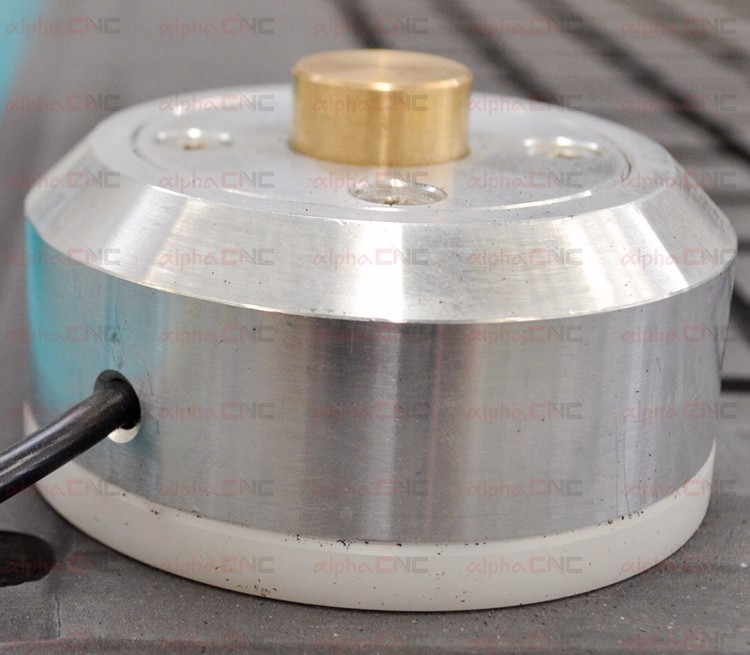

Automatic tool calibration Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

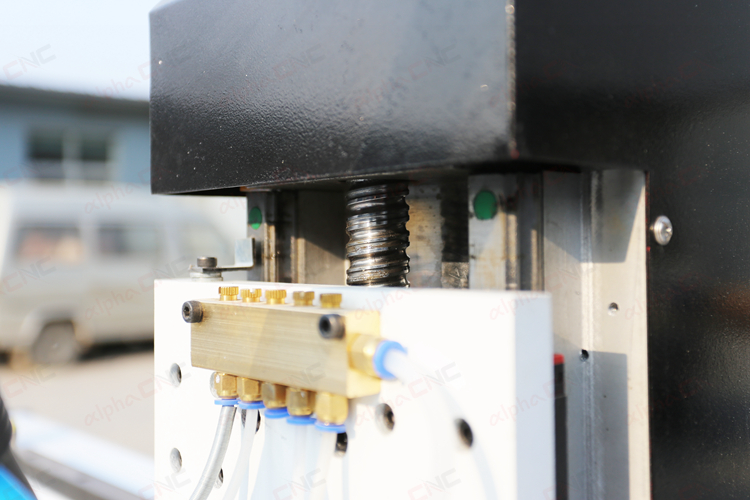

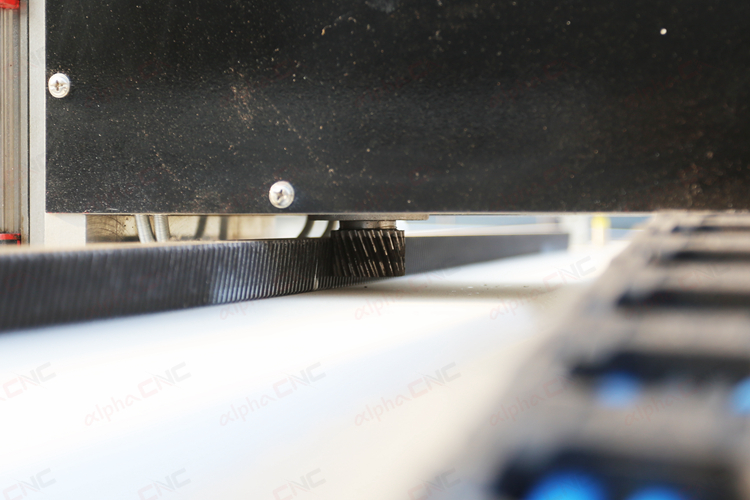

Z axis TBI ballscrew transmission Imported high quality TBI ballscrew, which is high-precision, durable, long service life.  X Y Axis Helical gear rack High hardness material, after strict heat treatment, high strength,  not easy to wear, not easy to deformation, to ensure the high speed of the machine.

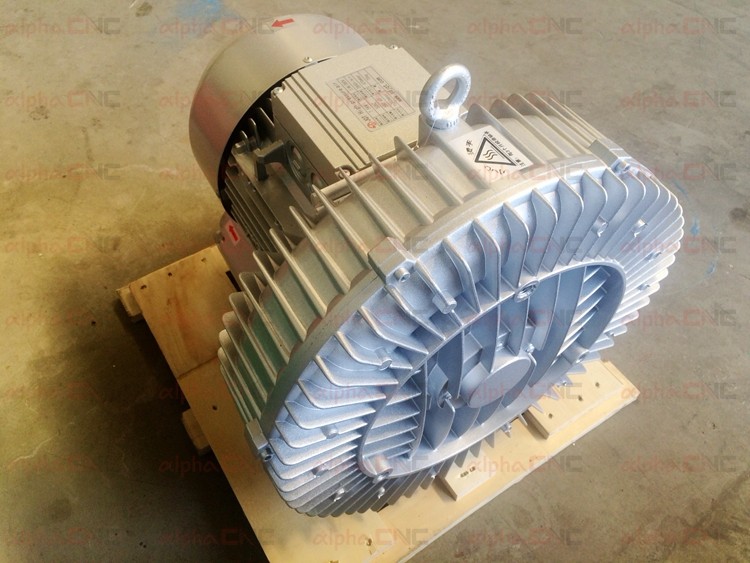

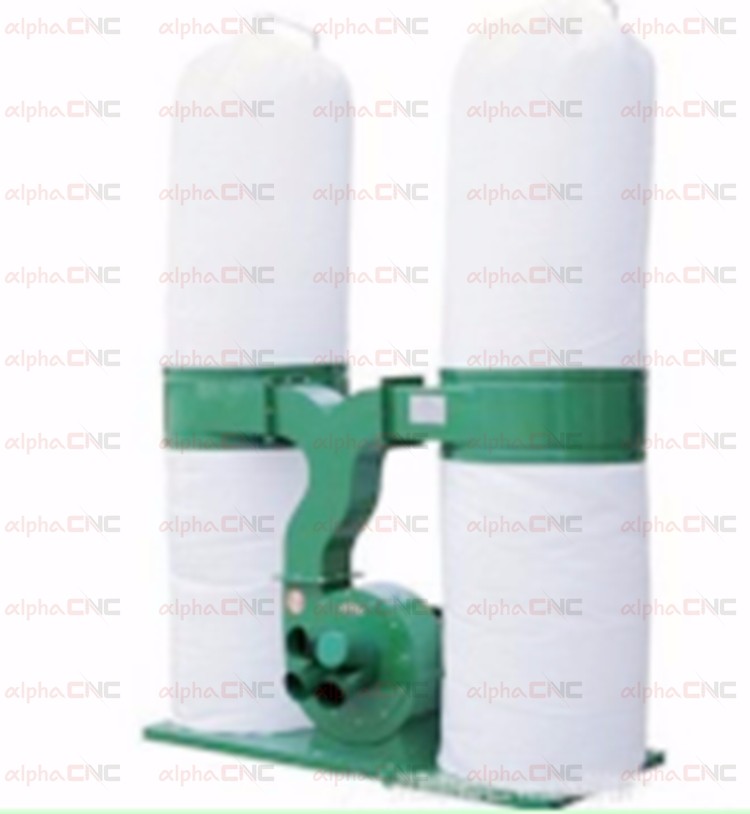

Optional Parts   Vacuum pumps Alpha offers air vacuum pumps which are economical and practical 4-Axis Rotary Axis  The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions. Dust collector
Alpha offers 2 bags powerful vacuum cleaner, to ensure a clean and tidy workshop.  Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery
Packaging
Size
3200 (L) * 2250 (W) * 1900 (D)
Weight
2000KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

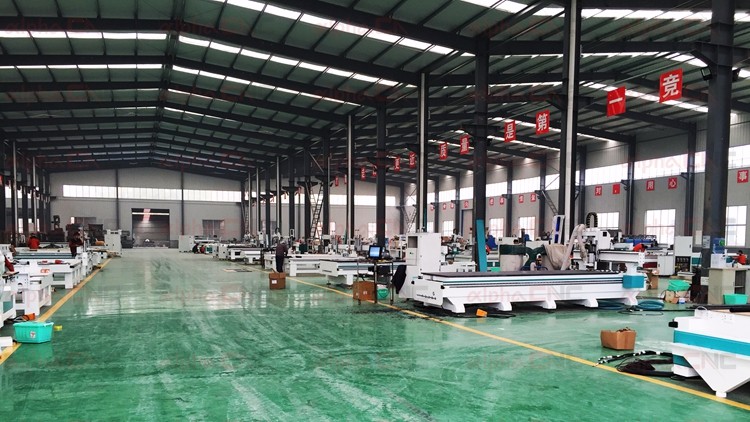

Company Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.
Agent and distributor wanted all over the world! Related Products 1325 1530 wood acrylic MDF Mach 3 DSP controller stepper motor 3.5kw 4.5kw spindle vacuum pump table CNC router machine 91.8% Response Rate Factory high quality 1325 4*8ft sign advertising industry acrylic ABS double plate furniture wood mdf CNC router machine 91.8% Response Rate 4 axis cnc router with rotary axis multi-function for making wood furniture table chair legs 3d cnc router price 91.8% Response Rate

Contact us if you need more details on 1325 CNC Router. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 2 spindle cnc router、4 axis cnc router. If these products fail to match your need, please contact us and we would like to provide relevant information.
