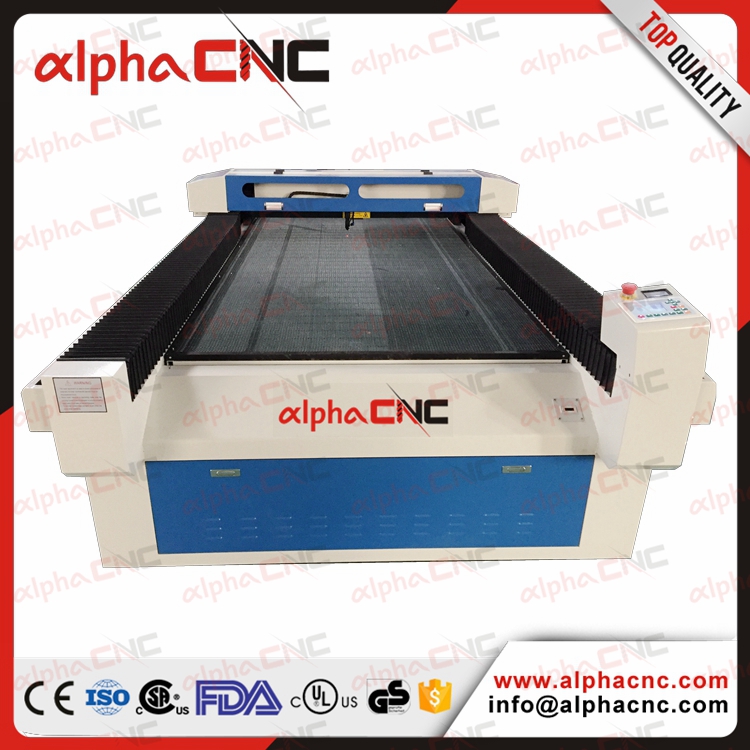

150w 180w 260w co2 cheap laser cutting machine for metal and nonmetal

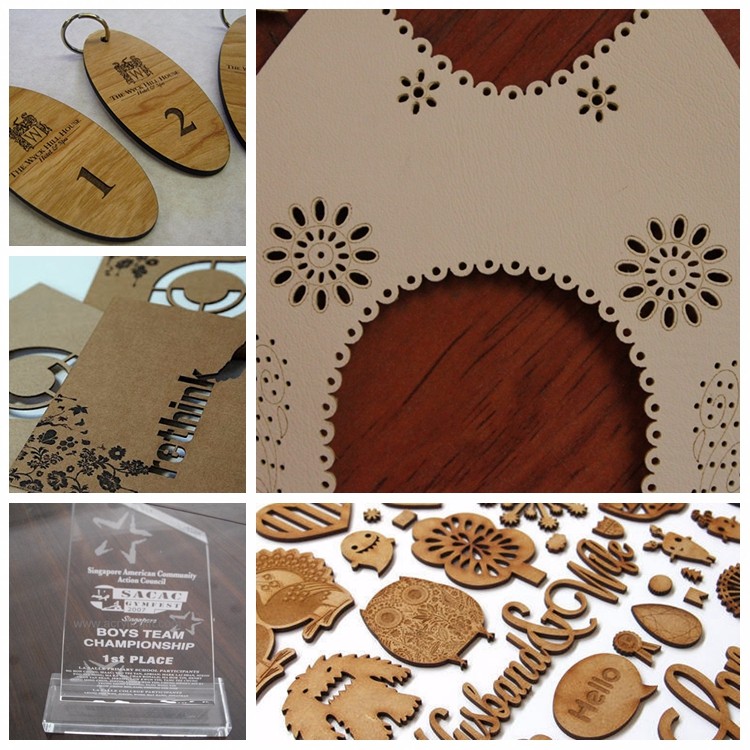

Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.
Cutting and Engraving materials:

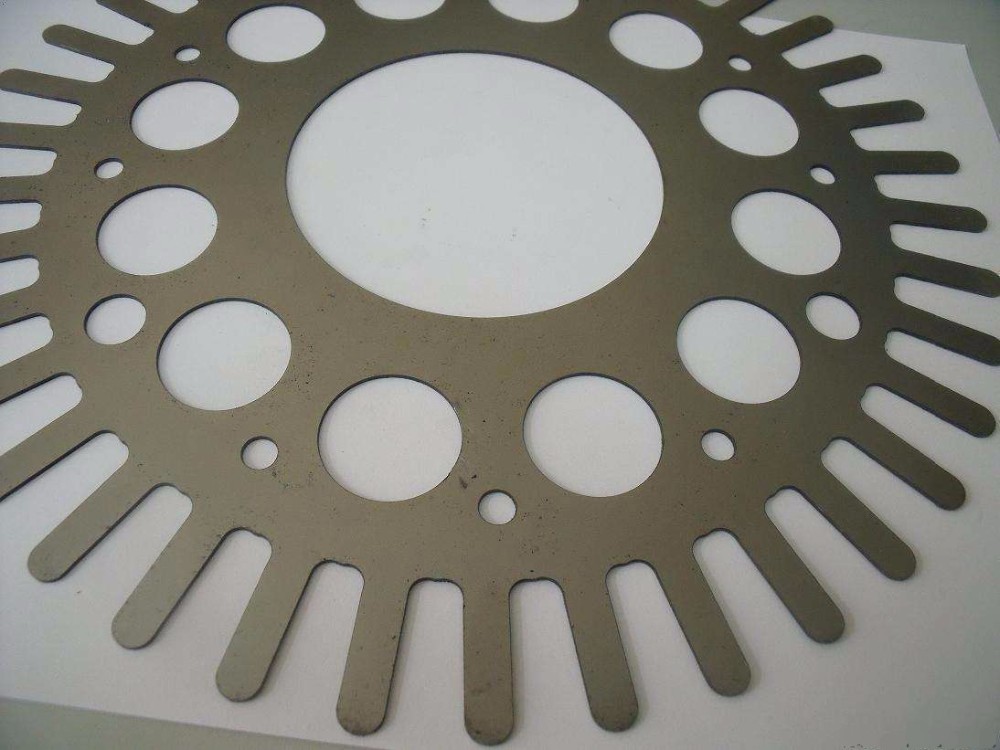

Metal, steel stainless steel, iron sheet, Bamboo, jade, marble, glass, crystal, plastic, garments, paper, leather, rubber, ceramic, Hard Wood, MDF, Plywood, Plexiglas, Plastic, Acrylic, and other mental and non metal materials. Can also engrave onto metals with the use of an additive laser marking material like "Cermark".
Specifications: • Laser-type : Sealed CO2 laser tube, water-cooling, 10.6um
• Laser power: 130W(other wattages available)
• Machine Power: 220VAC
• Engraving area: 1300 x 2500mm 1500*3000mm
• Max engraving speed: 0-30,000mm/min
• Max cutting speed: 0-24,000mm/min
• Laser output control: 1-100% software setting
• Location precision: less than 0.01mm
• Highest scanning precision: 50-1000DPI
• Operating temperature: 0 - 45C
• Operating humidity: 5- 95% non-condensing
• Minimum shaping character: English 1x1 mm
• Driving system: Micro-step motor and amplifiers
• Cooling mode: Freon-based chiller and water flow sensor
• Auxiliary equipment: Vacuum/Exhaust fan, air-exhaust hose, air-assist pump
• Work surface: Iron honeycomb
• Controlling software: RD
• Compatible software: TAJIMA, CorelDraw, AutoCAD, Photoshop, ...and more
• File formats supported: JPG, BMP, PLT, DST, DXF, AI...
• Color separation: Uses color property to set function, speed, and laser power.
Standard Configuration: Laser Cutter/Engraver, Water cooling pump and tank, Air Pump, Exhaust blower, RD software and Software User Manual, Machine operation Manual, Software User Manual, Trouble Shooting Manual, Communication cable, Power cable, Lenses and Laser tube (80 Watts), Machine operation Manual, USB Communication cable.

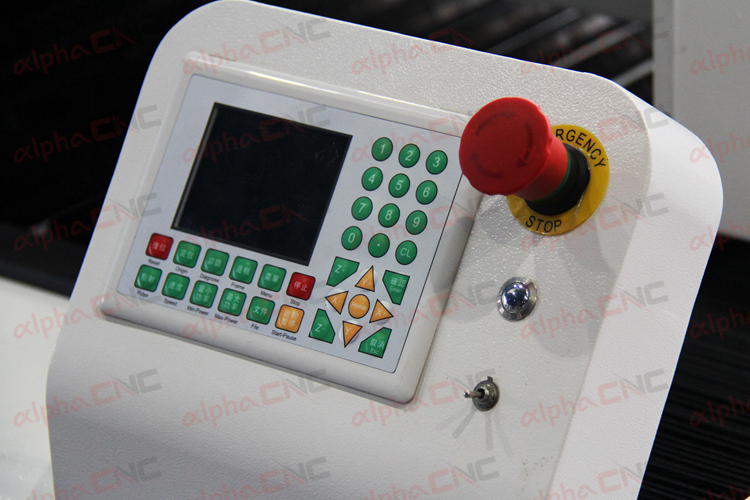

Detailed Images Easy to Use LCD Control Panel
User Friendly LCD control panel allows the user to quickly change selected program and modify machine operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area, Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop, Lockout the operations with the Key.

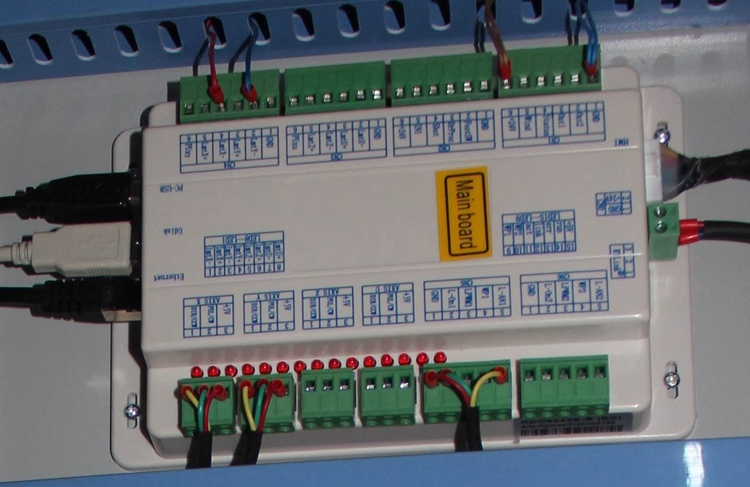

Dedicated Micro Processor Controller for great performance The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.

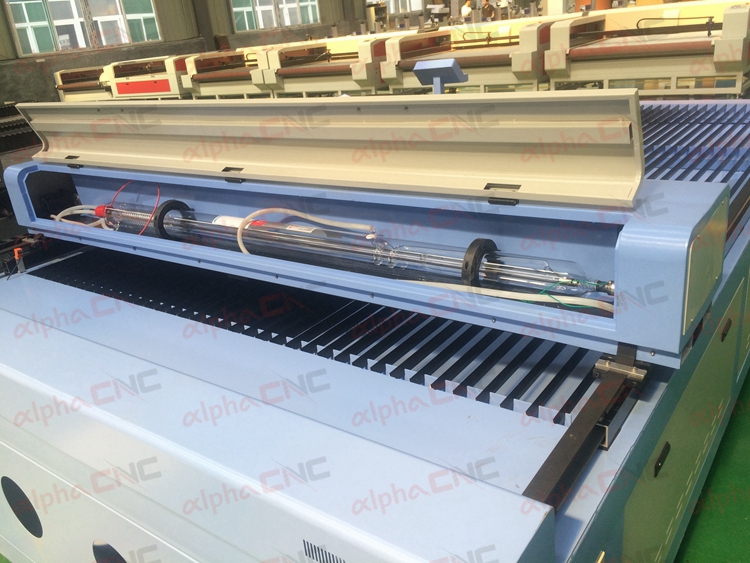

The standard laser tube is 130w. Alpha supplies 80-220 laser tube for your choice, you can choose according to your work and the workpiece thickness.

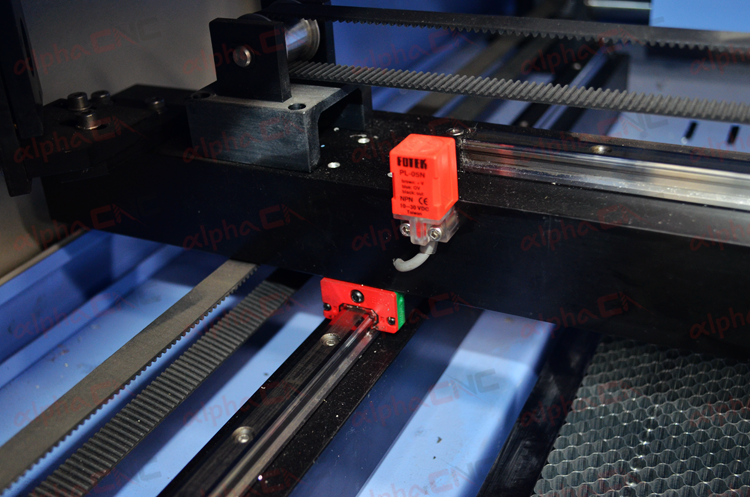

Transmission system The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed.

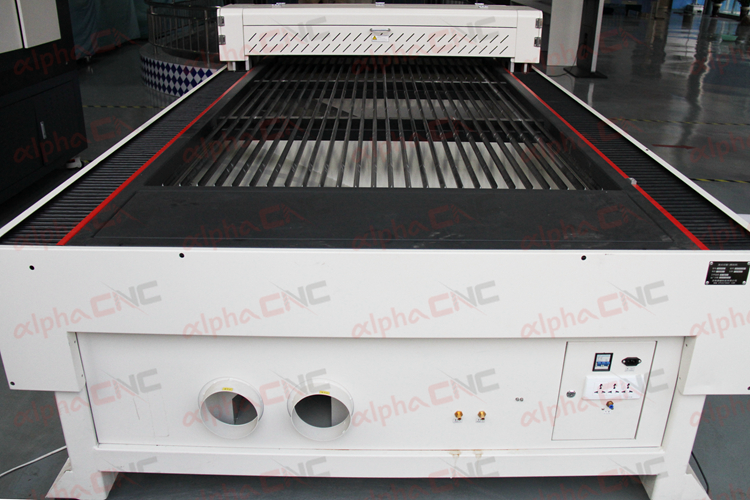

Table Alpha supplies blade and honeycomb table for your choice, you can choose according to your requirement.

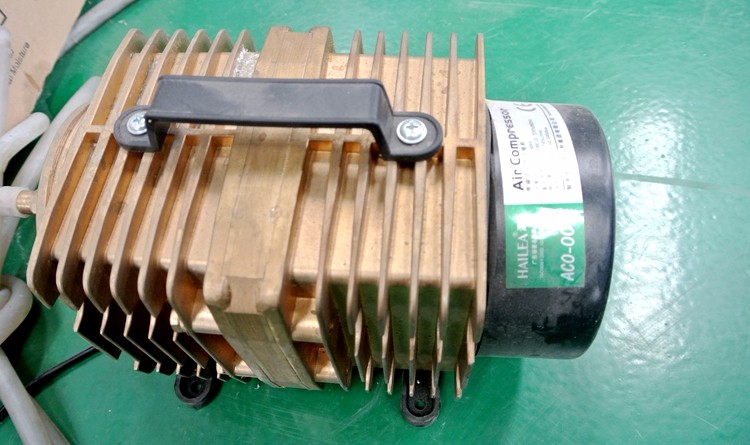

Air Pump The air pump is used for three basic reasons. The primary reason is the push fumes away from the laser's focal lens. This protects the lens from contaminants which could destroy the lens. The second function of the air pump is to push air into the material's kerf as created by the laser beam. Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material. The third reason is that the air will help to cool the material. If the laser cut/engraved material stays hot, then it could warp or shrink. This air pump is a diaphram style which does not require oil. Oil or water in the air line could be projected directly onto the focal lens. This air pump has a higher air flow rate and is quieter than other piston-stroke designs.
Blower / Fan / Vacuum The vacuum blower creates an air flow to remove dust and fumes from the work area of the laser machine. It is important to remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroy the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy. The blower can also be connected to a vaccum box to pull air through the work material.

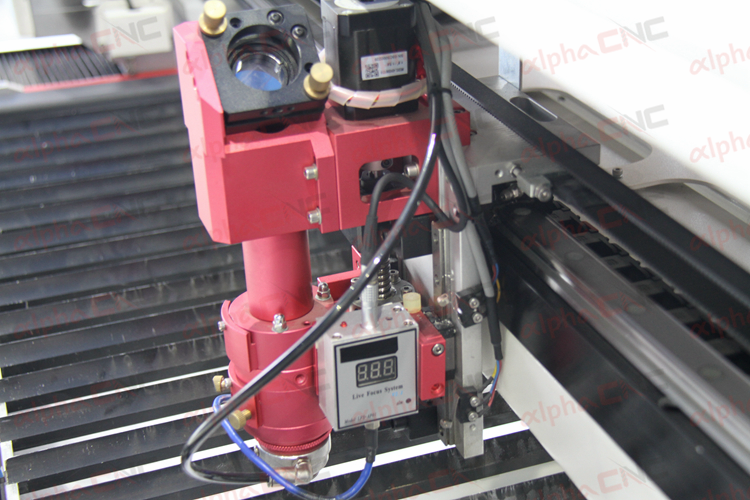

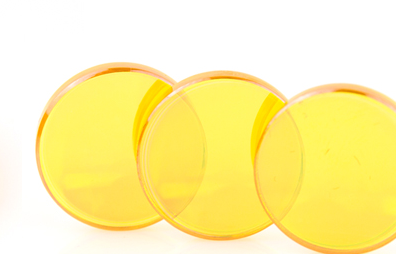

Lens American imported material made lens, making the lens with high quality.

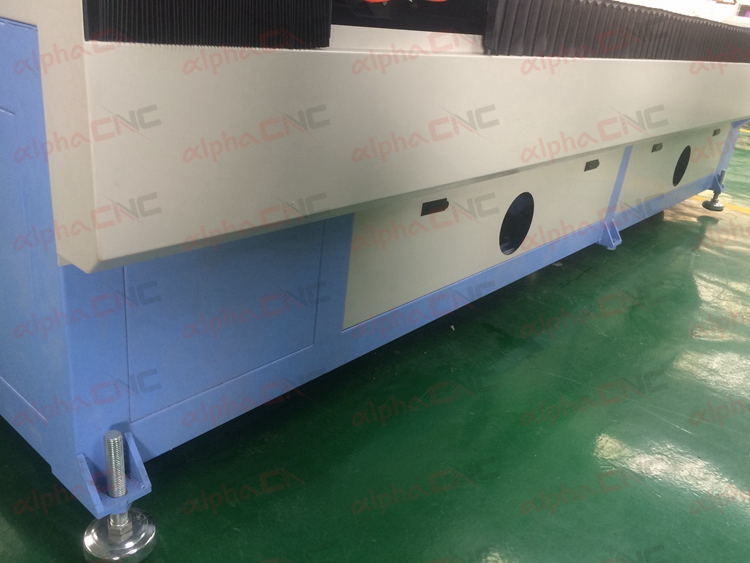

Leveling base The leveling base can adjust the height of the machine. It is necessary when the ground it not at the same level.

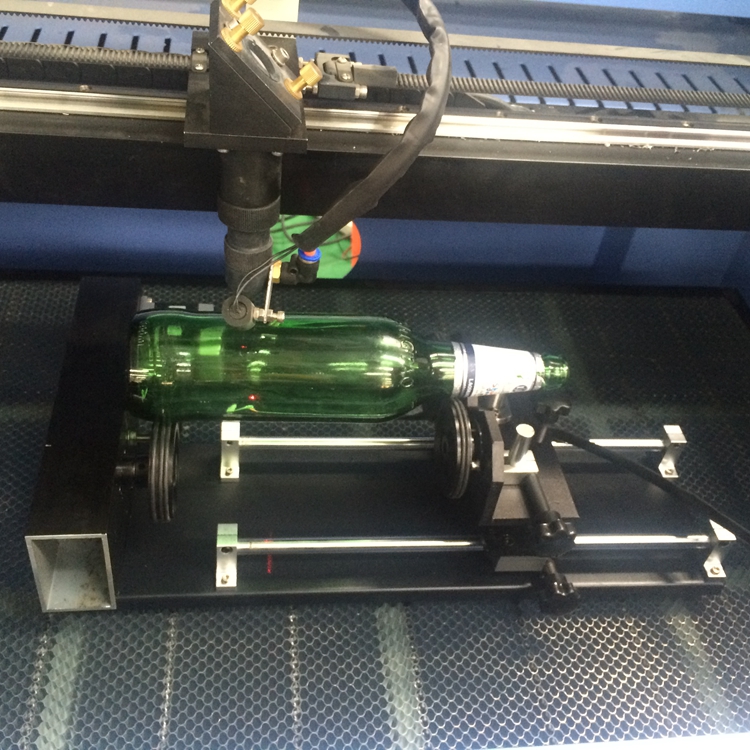

Optional Parts Sample Rotary axis
If you want to engrave bottle or other cylindrical objects, you should choose the rotary axis, it always together with the automatic up-down table.

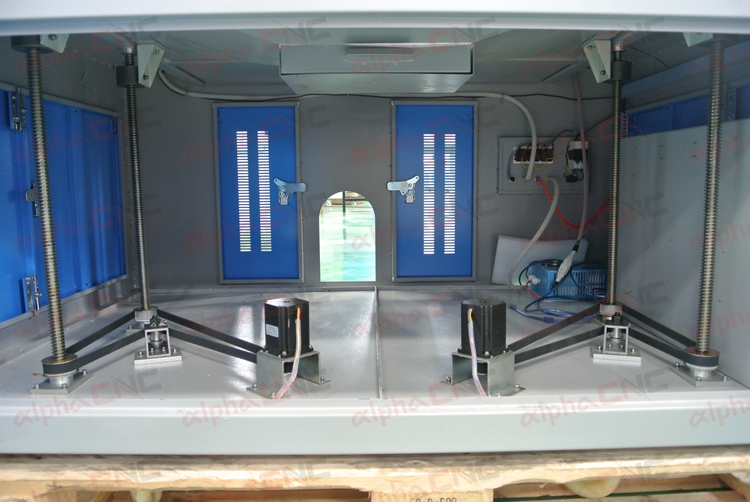

Automatic up-down table
It is automatically, using two motors to lift the table.It often match with a rotary axis, when engraving 3D l objects or the objects height beyond the laser machine working height, the automatic up-down is necessary.

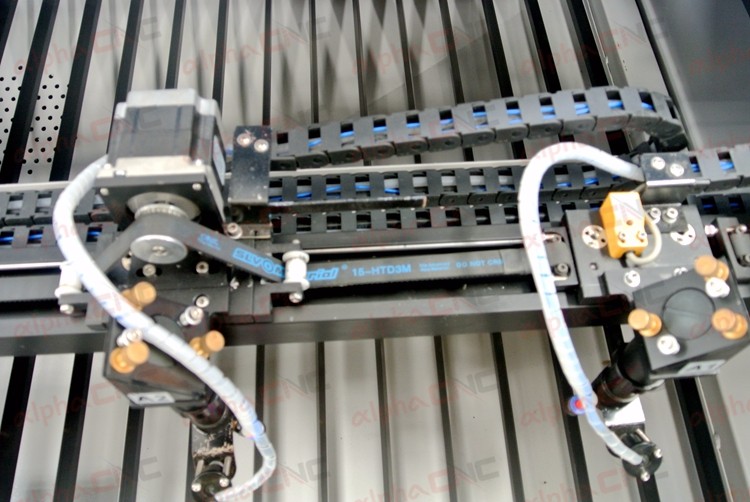

Double heads The double heads can work together, so the machine will have higher effectiveness. Our Service Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. Packing & Delivery
