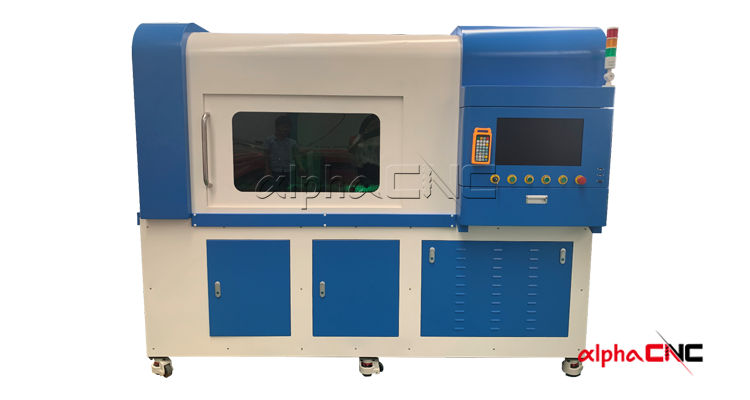

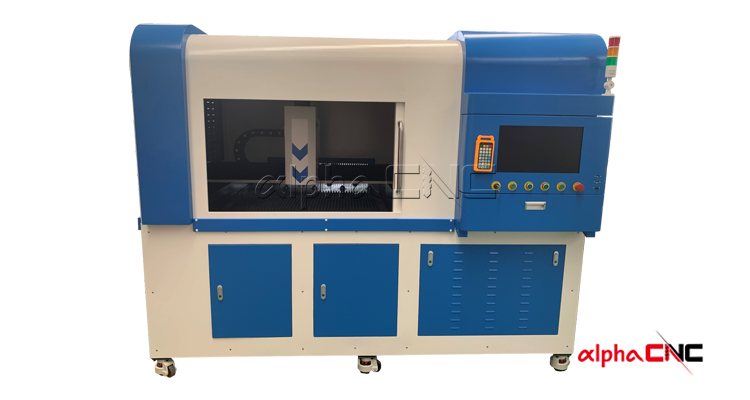

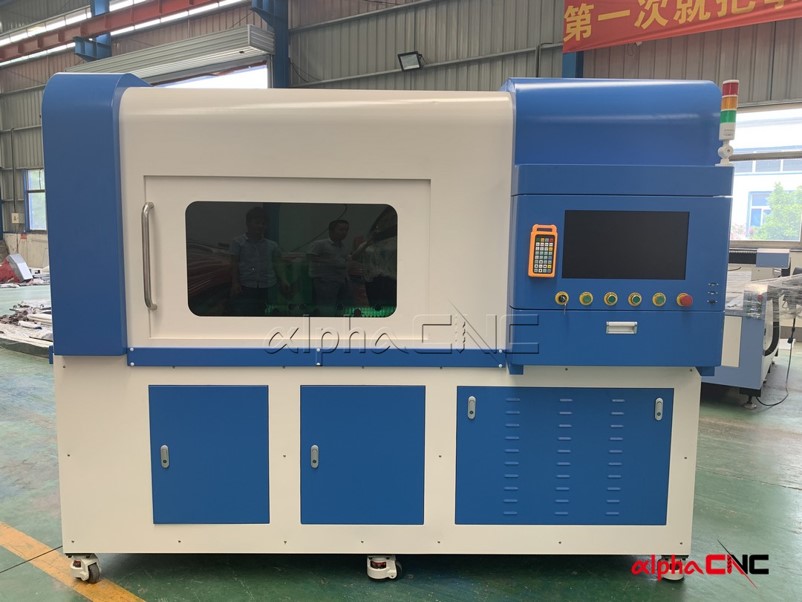

600*900*150Mm Working Area Engraver Fiber Portable Laser Cutter

Product Description

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-3{padding:0;font-size:16px;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-4{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-5{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-6{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-7{margin:0;padding:0}#detail_decorate_root .magic-8{width:750px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:137.0798319327731px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:137.0798319327731px}#detail_decorate_root .magic-13{width:750px;border-collapse:collapse}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:301px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:393px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{width:446px}#detail_decorate_root .magic-17{overflow:hidden;width:446px;height:338.96px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:446px;height:334px}#detail_decorate_root .magic-19{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-20{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-21{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-22{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-23{overflow:hidden;width:446px;height:335.392px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:28.544px;margin-left:-1.1893333333333334px;width:446px;height:267px}#detail_decorate_root .magic-25{overflow:hidden;width:446px;height:305.65866666666665px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:55.89866666666667px;margin-left:0;width:425px;height:180px}#detail_decorate_root .magic-27{overflow:hidden;width:446px;height:450.75733333333335px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:36.86933333333334px;margin-left:-1.1893333333333334px;width:446px;height:400px}#detail_decorate_root .magic-29{overflow:hidden;width:446px;height:352.04266666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:-13.082666666666666px;margin-left:7.136px;width:446px;height:400px}#detail_decorate_root .magic-31{overflow:hidden;width:446px;height:355.61066666666665px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:-16.650666666666666px;margin-left:1.1893333333333334px;width:446px;height:400px}#detail_decorate_root .magic-33{margin-top:-27.354666666666667px;margin-left:0;width:446px;height:400px}#detail_decorate_root .magic-34{overflow:hidden;width:446px;height:343.71733333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:-35.68px;margin-left:0;width:446px;height:400px}#detail_decorate_root .magic-36{overflow:hidden;width:446px;height:294.9546666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:-57.088px;margin-left:3.568px;width:446px;height:400px}#detail_decorate_root .magic-38{overflow:hidden;width:446px;height:347.2853333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:-32.112px;margin-left:0;width:446px;height:400px}#detail_decorate_root .magic-40{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;font-style:normal;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-41{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:629.8932384341638px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:629.8932384341638px} Product Description Application Industries:

Widely used in precision electronics, hardware, watches, glasses and other industries, can be more accurate of seven aluminum alloy, non-ferrous metals, stainless steel and other metal sheets and high reflective materials.
Laser power 500-2000w (optional), intended for cutting 0.5-9mm carbon steel plate, 0.5-6mm stainless steel plate, galvanized plate, electrolytic plate, 0.5-3mm aluminum alloy, 0.5-3mm brass and copper and other non-ferrous materials .
Working Area
600*900mm
Laser Power
1000W
Fiber Laser Generator Brand
Max, Raycus, IPG, GW, nLIGHT for option
Positioning accuracy
±0.03mm
Repeatability positioning accuracy
±0.02mm
XY Axis Maximum Acceleration
0.4g
XY Axis Max. speed
30m/min
Working Table
Serrate working platform
XY Axis Transmission system
German helical rack and pinion
Z axis Transmission system
Taiwan TBI ballscrew
Cooling System
Industry water chiller
Power Supply Rated Voltage
3-phase 380V/50Hz or Custom made
Machine Weight
1800KG
Dimension
1550*1800*2100mm
Detailed Images

The bed is welded from thick steel pipes. The bed is annealed to eliminate excess hard force, increase the ductility of the bed, and ensure stability during the cutting process.

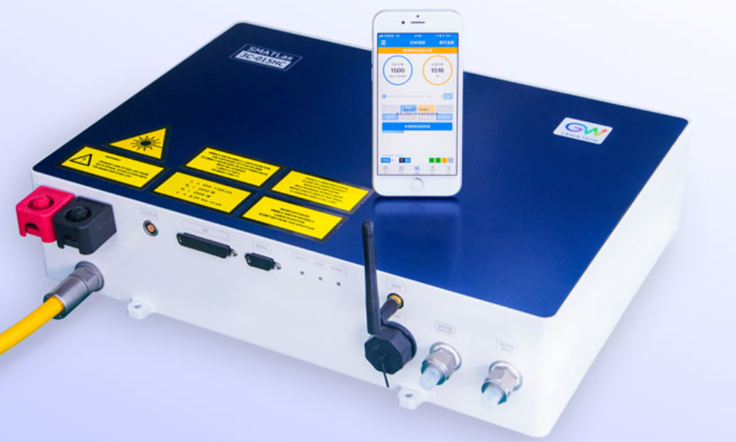

American GW Laser Generator The SMATLas 3C series of single-module continuous fiber lasers feature a unique optical structure. Targeted optimization of harsh industrial applications. The one-piece design of the 3C series of fiber lasers has a maximum output of 1500 watts. The full range of 3C lasers comes standard with a 20um diameter output cable and GW's patented intelligent cloud service platform. The world's leading energy-to-mass ratio (~10g/W) gives the 3C Series lasers unparalleled integration convenience and versatility.

Aerospace aluminum was manufactured using aerospace standards and extruded using a 4,300 ton press. After the aging treatment, the hardness can reach T6, which is the strongest of all beams. The aviation aluminum has good toughness, light weight, corrosion resistance, oxidation resistance and low density, which can greatly improve the processing speed.

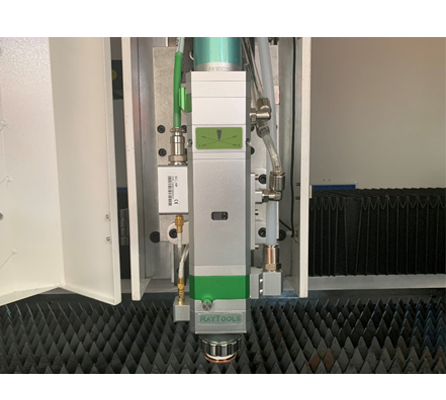

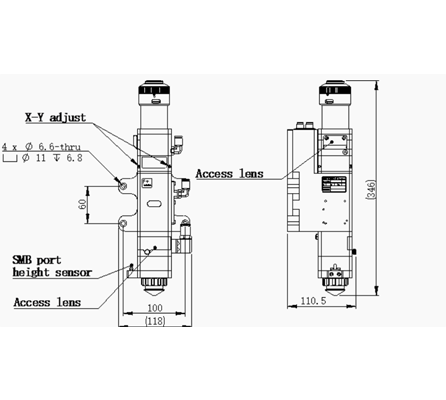

Switzerland Raytools laser head The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long
time.
Switzerland Raytools laser head The BM109 series is an auto-focusing fiber cutting head from RAYTOOLS AG in Switzerland for 2017 below 1.5KW. The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and
automatically cut the plates of different thicknesses and materials. The product is equipped with a D28 composite lens unit that integrates the beam and optimizes the optical and water-cooled design so that the laser head can operate continuously for a long time.

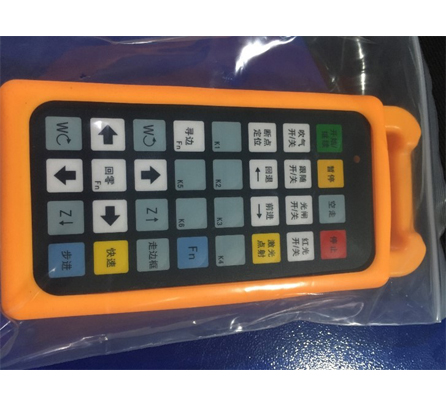

CypCut Controller
Support flight cutting, leapfrog, electric focusing, double exchange workbench Trajectory accuracy 0.05mm, positioning accuracy 0.01mm Cutting speed 30m/min Maximum air movement speed 80m/min Maximum acceleration 0.8G

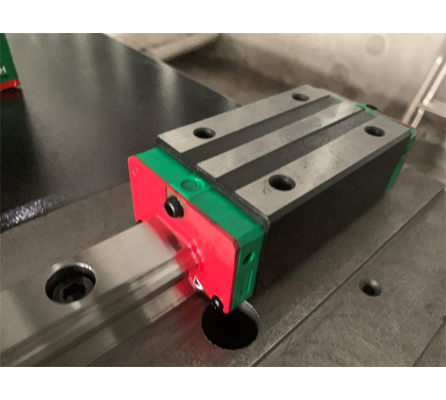

XYZ Axis Taiwan Hiwin Square Rail
the machine adopts Taiwan Hiwin square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.

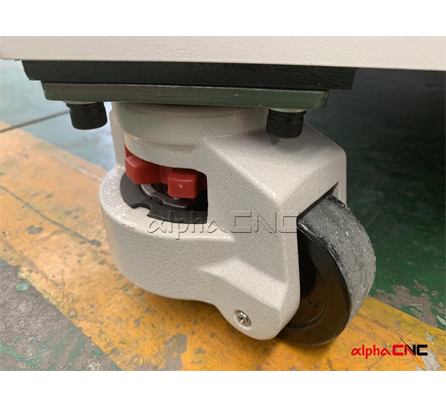

Moving roller

The machine comes with the moving roller, which will help you to move the machine easily.

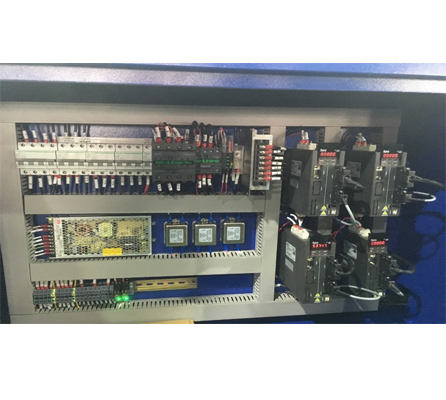

Control Cabinet All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet

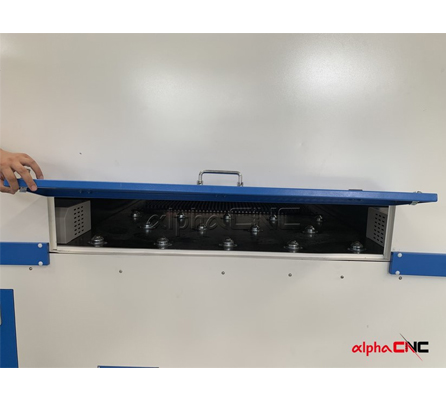

Back and forth feeding The back and forth feeding is necessary if your material is very long.

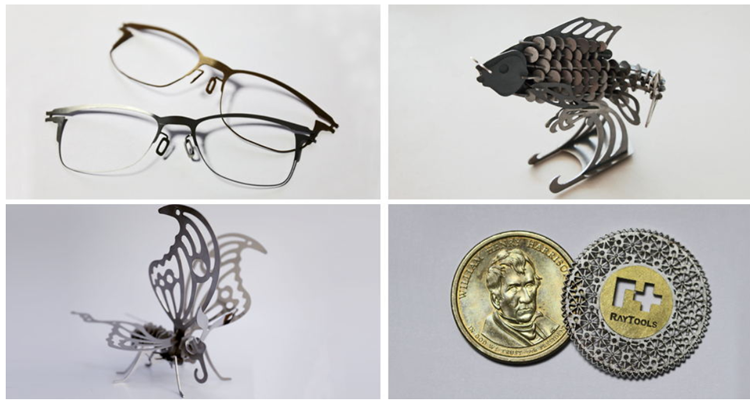

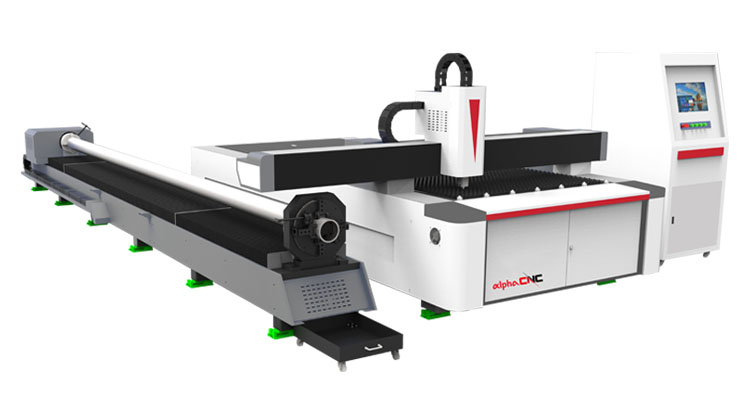

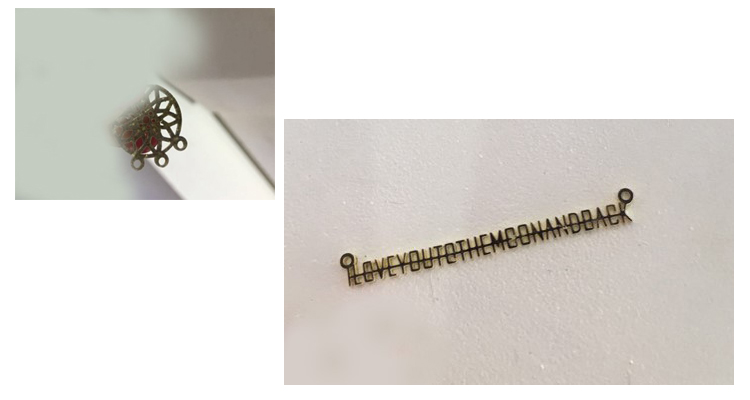

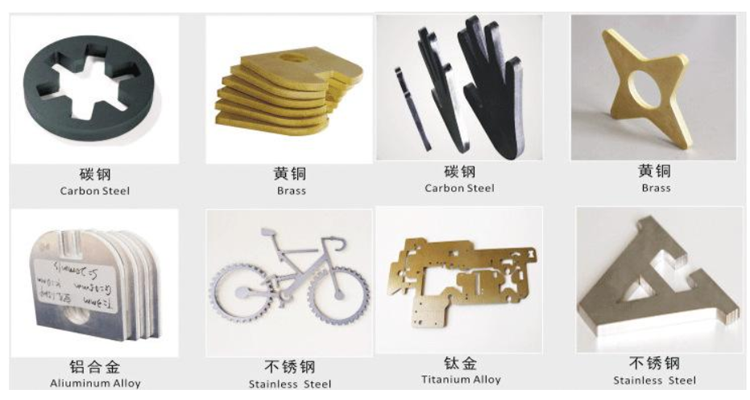

Sample Related Product Packing & shipping Certifications Our Company Alpha CNC Co., Ltd. is a high-tech enterprise with R&D, Producing, Sales and After-Sales Service for various industrial laser equipment involving Fiber Laser Cutting Machine , Fiber Laser Marking Machine, etc. At present, we have been researching in the laser equipment industry for many years. We have exported our fiber laser cutting machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.

All of Alpha CNC Laser Equipments has passed ISO9001:2008 Certificate, EURO CE Certificate, USA FDA Certificate and SGS Inspection Certificate and meets various industry standard. We have a professional after sales team to offer machine installation, debugging and comprehensive technical supports. we have also provide customized solutions to meet the needs of different customers. In the future, we will continue to invest a lot of money to support the development of fiber laser cutting machines. We treat every customer sincerely and we hope our agent and distributor all over the world! Welcome to join us!

Contact us if you need more details on fiber laser cutter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about portable laser engraver fiber、fiber laser cutting machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
