300W Pulse Fiber Handheld Laser Cleaning Machine

  • 300W Pulse Fiber Handheld Laser Cleaning Machine
  • 300W Pulse Fiber Handheld Laser Cleaning Machine
  • 300W Pulse Fiber Handheld Laser Cleaning Machine
  • 300W Pulse Fiber Handheld Laser Cleaning Machine

300W Pulse Fiber Handheld Laser Cleaning Machine

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,EXW,FCA
    Delivery Time: 3-7 Days
    Packaging: Standard exporting wooden case package
    Brand: INCODE
    Transportation: Ocean,Land,Air
    Place of Origin: Guangdong, China(Mainland)
    Port: Guangzhou

Basic Info

Model No.: IN-LC300W

Product Description

Laser cleaning equipment is a new generation of high-tech products for surface cleaning. Easy to install, operate and automate. Open the equipment, you can clean without chemical reagents, medium, and water. It can remove resin, oil, stain, dirt, rust, coating, plating, paint, etc.

Features of laser cleaning machine

a. Non-contact cleaning, without damaging the part matrix.
b. Precise cleaning can achieve selective cleaning with precise location and precise size.
c. No chemical cleaning fluid, no consumables, safety and environmental protection.
d. The operation is simple, just power on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning
e. The cleaning efficiency is very high, saving time.
f. The laser cleaning system is stable, almost no maintenance.

Overview

Quick Details

Condition: New; Power: 3200W

Applicable Material: Acrylic,Aluminum,Metal; Marketing Type: New Product 2020

Core Components: PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear Pump;

Laser Type: Fiber Laser; Place of Origin: Guangdong,China

Brand Name: INCODE; Dimension(L*W*H): 1100mm×700mm×1150mm

Laser Source Brand: RAYCUS; Laser Head Brand: RAYCUS

Weight(KG): 290KG; Product Name:IN-LC300W

Scan Width: 10-80MM; Fiber Power: ≥300W

Cleaning Efficiency: 15 m2/h; Power Adjustment:10%-100%(Gradient Adjustable)

Center Wavalength: 1064nm±5nm; Warranty:Up to 2 years

Packaging & Delivery

Packaging Details:Wood Case

Port:Guangzhou or Other Port

Image Desciption

1602814704(1)

Product Parameter



1602828923(1)


A.Laser Cleaning Machine Operating Parameters

Table 1 Basic operating parameters of equipment

Content

Parameter

Supply Voltage

Single-phase 220V±10%, 50/60Hz AC

Power

3200W(With Chiller)

Place the Environment

Flat, No Vibration,No Impact

Working Temperature

0℃~40℃

Working Humidity

30%~80%


B. Laser Cleaning Machine Mechanical Parameters

Table 2 Equipment mechanical parameters

Content

Parameter

Size

1100mm×700mm×1150mm

Weight

290Kg

Fiber Length

5m

Washing Head Weight

3.0Kg

Move Method

Hand Held

Scan Width

10-80mm


C
.Optical Parameters of Laser Cleaning Machine

Table 3 Equipment optical parameters

Content

Parameter

Average Laser Power

300W

Output Power Instability

5%

Power Adjustment Range%

10-100(Gradient Adjustable)

Pulse Widthns

130-160

Center Wavelengthnm

1064±5

Repeat FrequencykHz

25-50Gradient Adjustable

Maximum Single Pulse EnergymJ

12.50

Maximum Peak PowerkW

96

Fiber Coreμm

100

Cleaning Efficiencym2/h

15

Focal Lengthmm

100/160 Replaceable

Cooling Method

Water Cooling

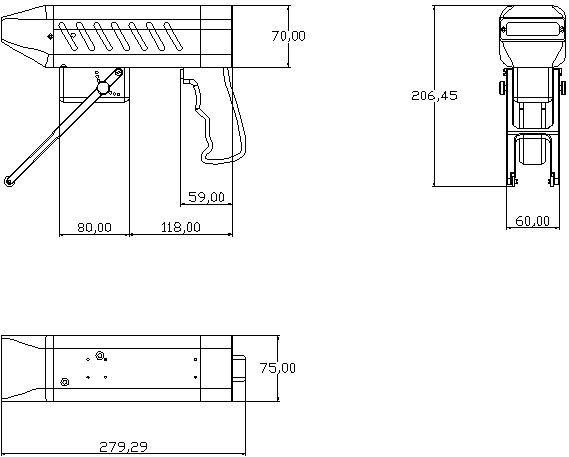

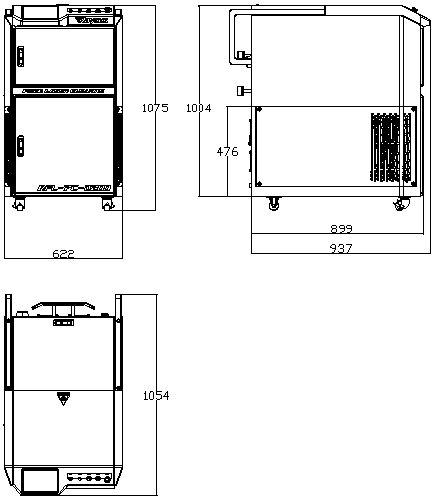

Product Structure Diagram And Apearance Diagr
am


Laser Cleaning Technology Application

Laser cleaning is currently widely used in industry. It is mainly used for rust removal, paint removal, oil removal and oxide film removal of precision parts. Due to its high efficiency, energy saving and environmental protection, it is used in molds, automobile manufacturing, cultural relics restoration and shipbuilding. And other industries are popular.

2a4e01865b5283a88cc78d4ee46ecde


Advantage Comparison

Da44e92d777da8a273904fa03696594
