Dog Name Plates Milling Machine Small Mini Desktop Cnc Router

Product Description

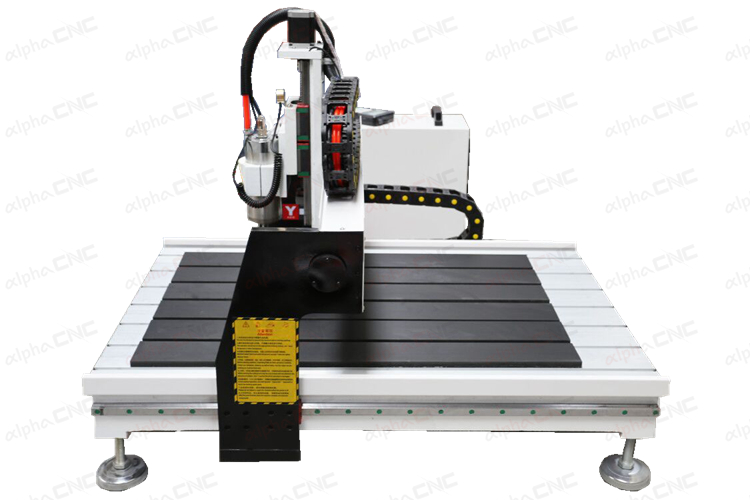

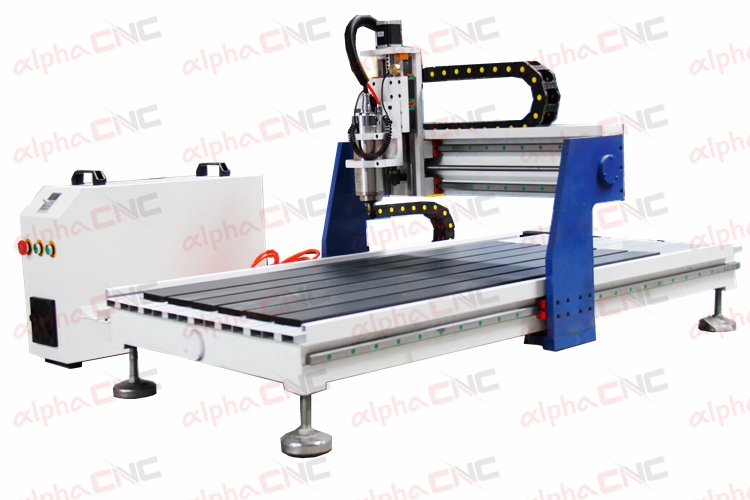

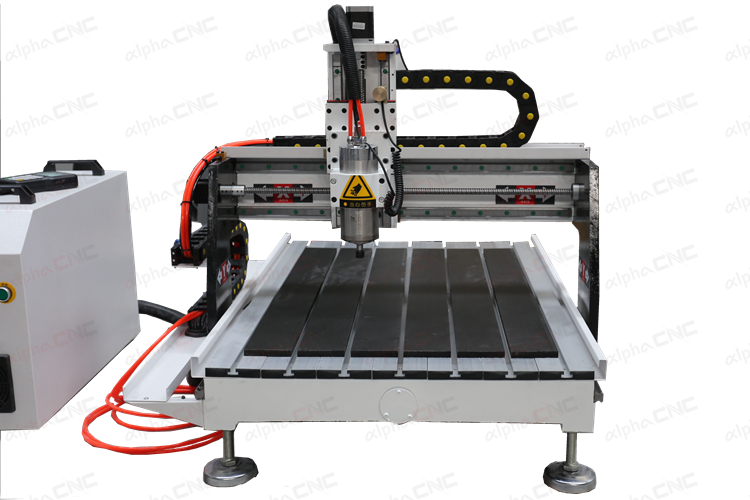

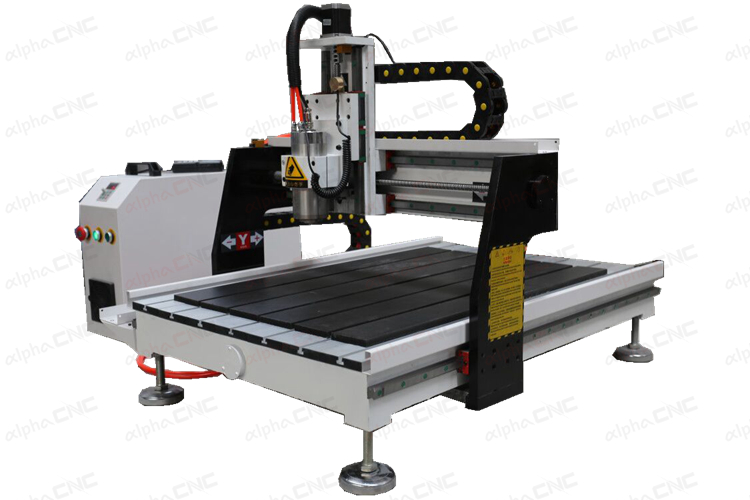

Product Description Dog Name Plates Milling Machine Small Mini Desktop Cnc Router Introduction:  The Alpha mini CNC Router was designed to be the best small CNC Router on the market today. Always on Target to improve our machines, the Alpha Mini is now offered as a freestanding CNC machine, or a table top system. The machine structure is iron cast, it is with high precision and good damping effect.
This CNC Router works well for the Custom Furniture and Cabinet builder as well as the serious Hobbyist that wants a commercial grade CNC Table. If you have a small shop, but don't want to sacrifice quality for the size, then this CNC router is the perfect choice.
The machine can process: wood, MDF, acrylic, epoxy resin, ABS, PP, PE, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
The machine can be used in furniture, craft gift industry, sign industry, decoration and many other industries.
Main Features--dog name plates ※ High frequency 0-24,000rmp spindle
※ T-slot table
※ Easy to use Mach 3 Controller
※ Brushless micro-stepper motors
※ Hiwin square rail
※ High precision TBI Ballscrew

ADescriptions
                                                                     Parameters
Model
ABT-6090
ABT-6012
ABT-6040
Custom made
Working area
600*900mm
600*1200mm
600*400mm
Custom made
Accuracy
±0.03mm
Table Surface
Aluminum T-slot Table
Frame
Iron Cast
XYZ Structure
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail
Max. Rapid Travel Rate
45000mm/min
Max. Working Speed
20000mm/min
Spindle Power
1.5kw spindle(2.2kw for option)
Spindle Speed
0-24000RPM
Drive Motors
Leading shine stepper motor and driver(Yako driver for option)
Working Voltage
AC220V/50/60Hz,1PH (Option: 380V/415V/220V 3phase)
Command Language
G Code
Operating System
MACH 3 (DSP or Nc-studio for option)
Computer Interface
Ethernet/USB interface
Inverter
Taiwan DELTA (Fuling for option)
Software
ARTCAM/ Vectric Aspire
Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.
Sample Detailed Images Mach 3 Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.

1.5kw High Frequency Collet Spindle
The ABT-6090 machine comes standard with a 1.5kw high frequency collect spindle. These precision spindles require no maintenance, use industry standard ER collets, fully programmable speeds from 6000 to 24000 RPM, and comes complete with vacuum hood / hose support system and wrenches.
Base Frame The base frame iron cast, it is with high precision and good damping effect.

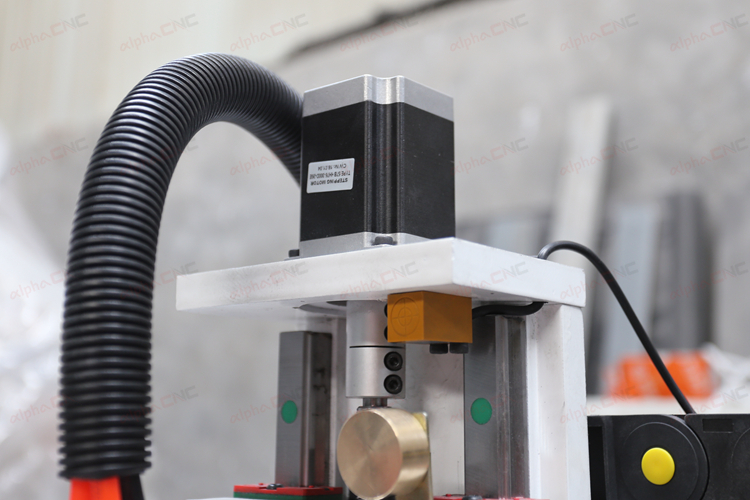

Drive Motors The  Alpha Series CNC Router utilizes brushless microstepper motors. These motors require no regular maintenance — therefore, reducing any maintenance downtime!
Automatic tool calibration Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.

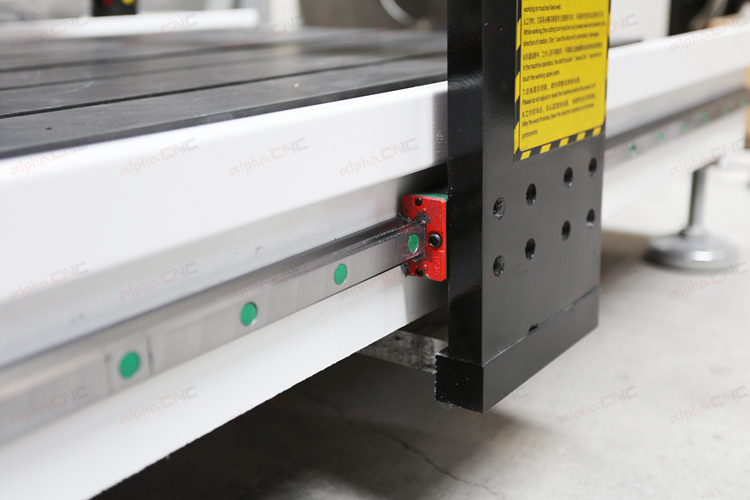

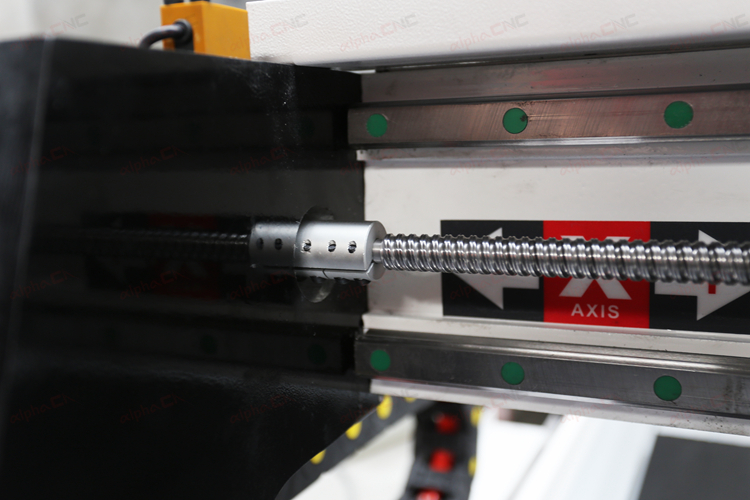

XYZ axis TBI ballscrew transmission Imported high quality TBI ballscrew, which is high-precision, durable, long service life.  X Y Z Axis Hiwin square rail  The machine adopts Taiwan Hiwin square rail, which is more than twice durable.
Optional Parts   Vacuum pumps Alpha offers air vacuum pumps which are economical and practical 4-Axis Rotary Axis  The addition of  4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions. Dust collector
Alpha offers 2 bags powerful vacuum cleaner, to ensure a clean and tidy workshop.  Our Service Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service
* Training how to instal the machine, training how to use the machine.  * Engineers available to service machinery overseas. Packing & Delivery
Packaging
Size
1200 (L) * 1300 (W) * 0.8 (D)
Weight
250KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
Company Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, Fiber Laser Marking Machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.
Agent and distributor wanted all over the world! Related Products Desktop CNC Router  91.8% Response Rate Factory high quality 1325 4*8ft sign advertising industry acrylic ABS double plate furniture wood mdf CNC router machine 91.8% Response Rate 4 axis cnc router with rotary axis multi-function for making wood furniture table chair legs 3d cnc router price 91.8% Response Rate

Contact us if you need more details on dog name plates. We are ready to answer your questions on packaging, logistics, certification or any other aspects about milling machine small、mini desktop cnc router. If these products fail to match your need, please contact us and we would like to provide relevant information.
